Ceftolozane-Tazobactam NONMEM Model Diagnostic

Author

Paulina Okunska

Published

February 21, 2026

1 Set-up Environment

1.0.1 Script Parameters

Code

set.seed(5238974)
model_run <- 102
spec_name <- "lookup.yml"
dat.name <- "RawData.csv"
thisScript <- "model_diagnostic_2cmt.qmd"

etas <- c("ETA-V1C", "ETA-CLC", "ETA-V2C", "ETA-QC", "ETA-V1T", "ETA-CLT", "ETA-V2T", "ETA-QT")
etas_est  <- c("ETA2//ETA-CLC", "ETA5//ETA-V1T", "ETA6//ETA-CLT")

#Directories
spec_dir <- here::here("data/derived")
derDir <- here::here("data/derived")
model_dir <- here::here("model/nonmem/basic")
scripts <- here::here("scripts/Model_Development")
tab_dir <- here::here("deliv/tables/Diagnostic")

outDir <- paste0("model/nonmem/basic/", model_run)
options(scipen = 999)

##Continuous Covariates
contcov_labels <-c("BW//Body Weight (kg)", "AGE//Age (years)",
                   "SOFA//Sequential Organ Failure Assessment", "PCT//Procalcitonin (ng/mL)",
                   "ELWI//Extravascular lung water index", "CI//Cardiac Index (L/min/m2)",
                   "CRE//Creatinine Concentration (mg/dL)", "ALB//Albumin Concentration (g/dL)",
                   "PROTEIN//Protein Concentration  (mg/mL)") #"HEIGHT//Height (cm)",
contcov_vars <- c("BW", "AGE", "SOFA", "PCT", "ELWI", "CI", "CRE", "ALB", "PROTEIN") #"HEIGHT",

##Categorical Covariates
catcov_labels <- c( "SEX_f//Gender", "ECMO_f//ExtraCorporeal Membrane Oxygenation", "CRRT_f//Continuous Renal Replacement Therapy")
catcov_vars <- c("SEX_f", "ECMO_f", "CRRT_f")

Code

options(bbr.bbi_exe_path = "C:/Users/pauoku/AppData/Roaming/bbi/bbi.exe")

bbr::use_bbi()

Installing bbi on a windows system
────────────────────────────────────────────────────────────────────────────────
 - Installed Version: 3.4.0  - Current release: 3.4.0

Code

bbi_init(.dir = model_dir,             # the directory to create the bbi.yaml in
         .nonmem_dir = "C:/",          # location of NONMEM installation
         .nonmem_version = "nm75g64",  # default NONMEM version to use
.bbi_args = list(
     mpi_exec_path ="C:/nm74g64/run/psexec",
      parafile = "C:/nm74g64/run/fpiwini8.pnm",
      parallel = FALSE,
      threads = 1))

2 Read Inputs

3 Parameters

4 Model Summary

Dataset: ..\..\..\..\data\derived\RawData.csv

Records: 3376    Observations: 191   Subjects: 13

Objective Function Value (final est. method): 877.838

Estimation Method(s):

– First Order Conditional Estimation with Interaction

**Heuristic Problem(s) Detected:**

– hessian_reset

|parameter_names |estimate |stderr |shrinkage |
|:---------------|:--------|:------|:---------|
|THETA1          |25.3     |3.38   |          |
|THETA2          |4.25     |0.958  |          |
|THETA3          |45       |13.8   |          |
|THETA4          |2.89     |0.585  |          |
|THETA5          |36       |19.9   |          |
|THETA6          |15.9     |1.90   |          |
|THETA7          |21.1     |14.6   |          |
|THETA8          |103      |78.5   |          |
|OMEGA(2,2)      |0.447    |0.184  |4.29      |
|OMEGA(5,5)      |0.507    |0.451  |13        |
|OMEGA(6,6)      |0.164    |0.0783 |2.75      |
|SIGMA(1,1)      |0.0678   |0.0133 |4.58      |
|SIGMA(2,2)      |0.0713   |0.0106 |10.9      |

[[1]]
[[1]]$method
[1] "First Order Conditional Estimation with Interaction"

[[1]]$ofv_no_constant
[1] 877.838

[[1]]$constant_to_ofv
[1] 351.0345

[[1]]$ofv_with_constant
[1] 1228.872

[[1]]
[[1]]$method
[1] "First Order Conditional Estimation with Interaction"

[[1]]$condition_number
[1] NA

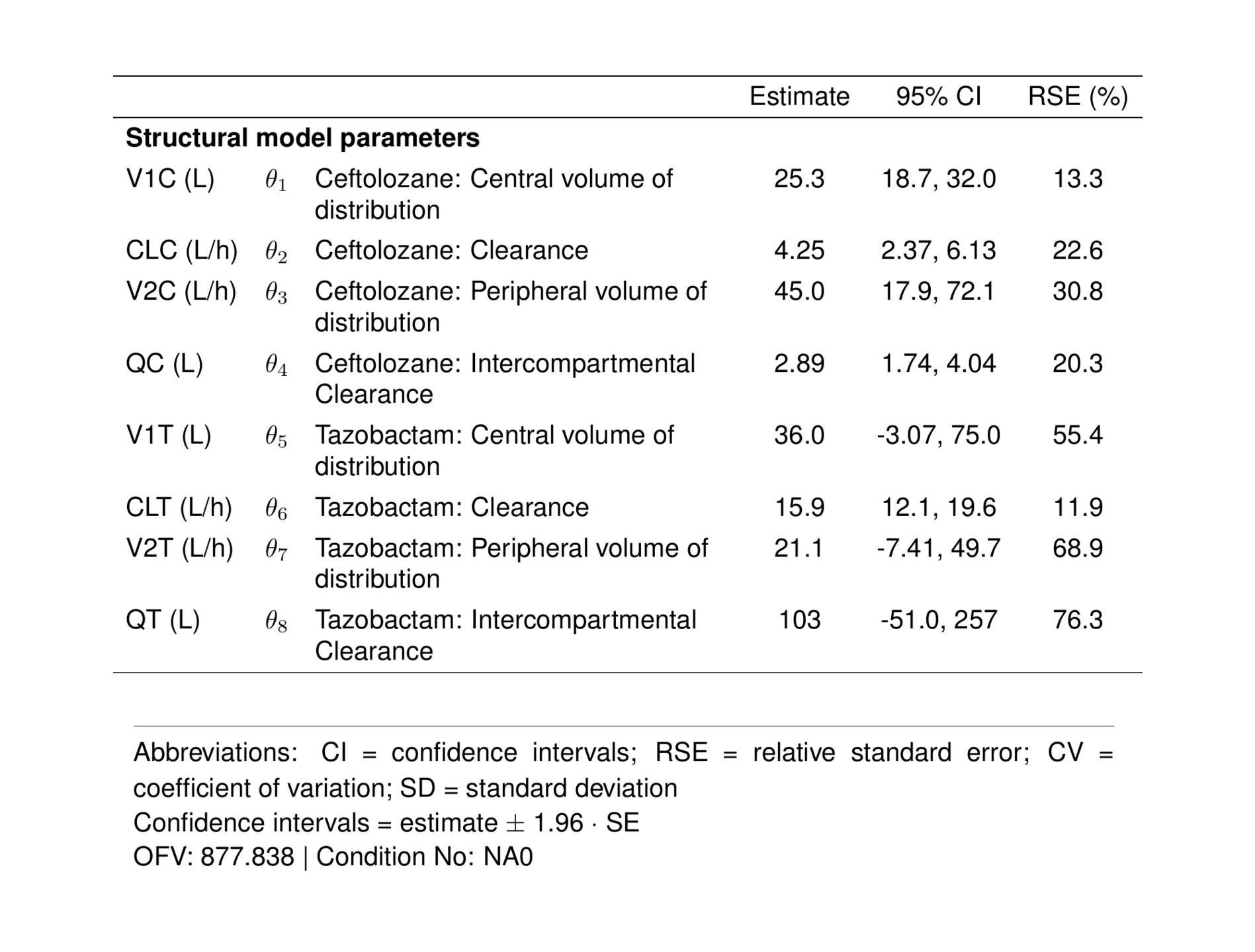

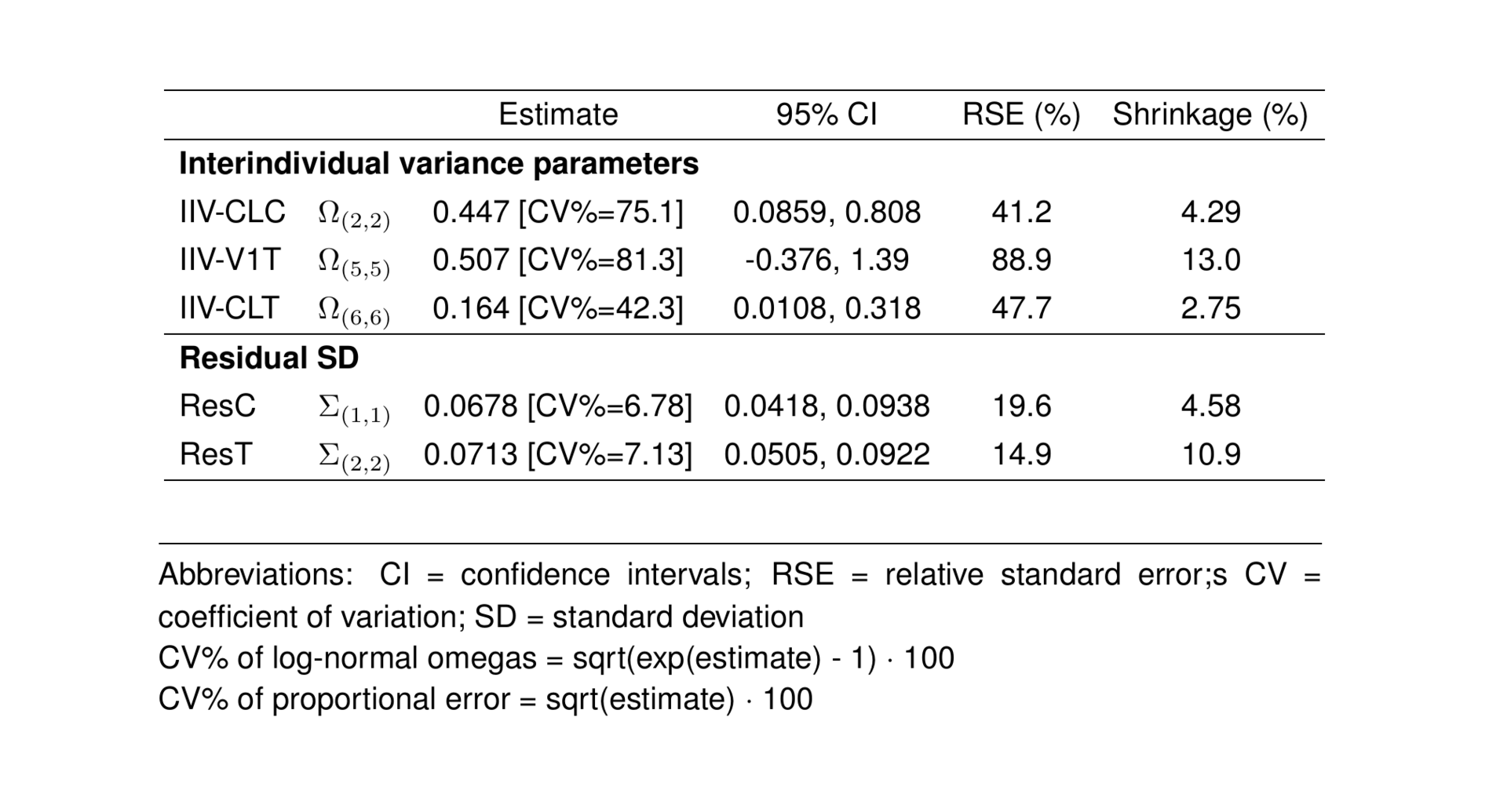

Name	Description	Estimate	95% CI	RSE (%)	Shrinkage (%)
V1C (L)	Ceftolozane: Central volume of distribution	25.3	18.7, 32.0	13.3	-
CLC (L/h)	Ceftolozane: Clearance	4.25	2.37, 6.13	22.6	-
V2C (L/h)	Ceftolozane: Peripheral volume of distribution	45.0	17.9, 72.1	30.8	-
QC (L)	Ceftolozane: Intercompartmental Clearance	2.89	1.74, 4.04	20.3	-
V1T (L)	Tazobactam: Central volume of distribution	36.0	-3.07, 75.0	55.4	-
CLT (L/h)	Tazobactam: Clearance	15.9	12.1, 19.6	11.9	-
V2T (L/h)	Tazobactam: Peripheral volume of distribution	21.1	-7.41, 49.7	68.9	-
QT (L)	Tazobactam: Intercompartmental Clearance	103	-51.0, 257	76.3	-
IIV-CLC	Variance for CLC	0.447 [CV\%=75.1]	0.0859, 0.808	41.2	4.29
IIV-V1T	Variance for V1T	0.507 [CV\%=81.3]	-0.376, 1.39	88.9	13.0
IIV-CLT	Variance for CLT	0.164 [CV\%=42.3]	0.0108, 0.318	47.7	2.75
ResC	Ceftolozane: Proportional	0.0678 [CV\%=6.78]	0.0418, 0.0938	19.6	4.58
ResT	Tazobaktam: Proportional	0.0713 [CV\%=7.13]	0.0505, 0.0922	14.9	10.9

5 Concordance Plots

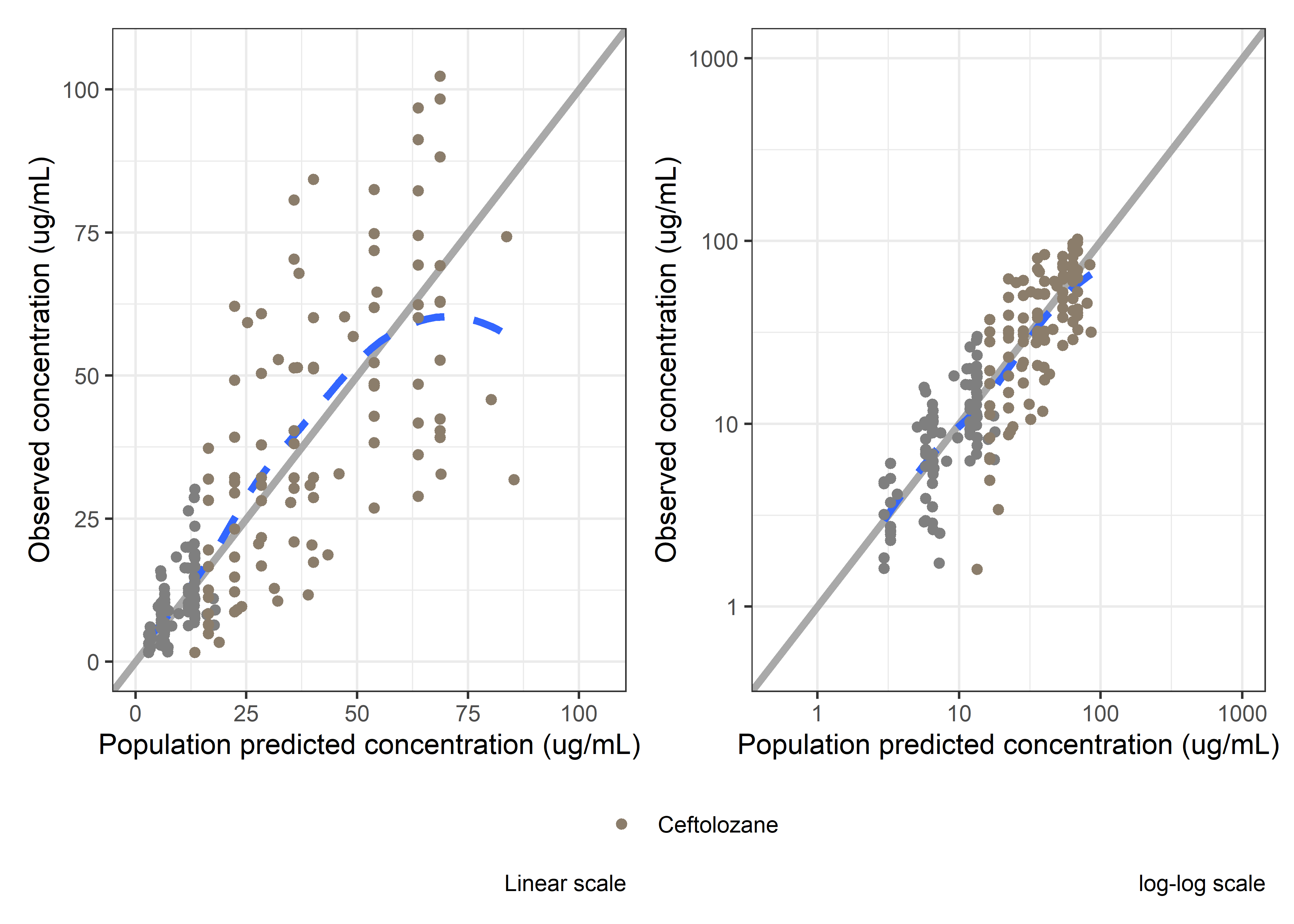

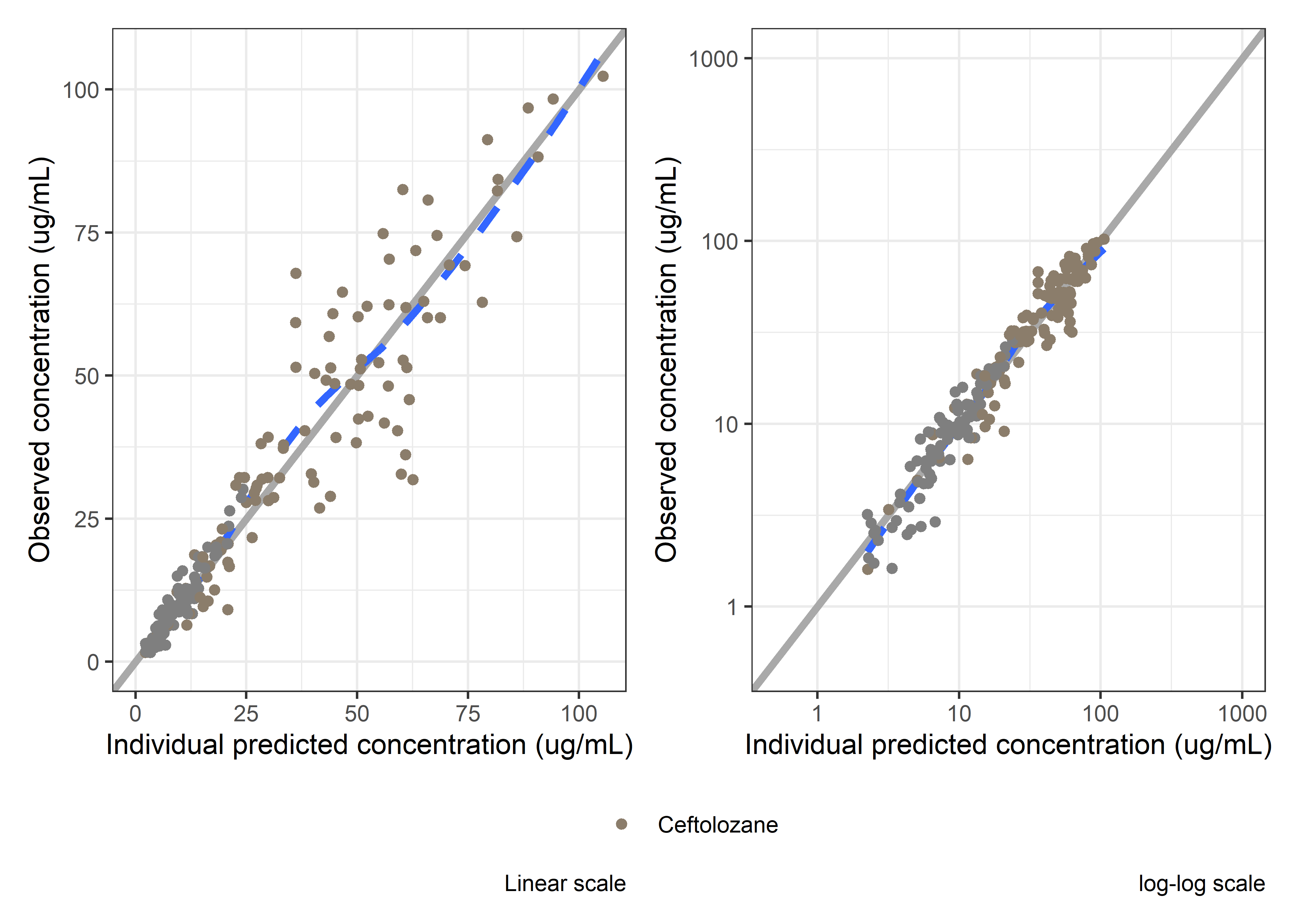

5.1 IPRED/PRED vs DV

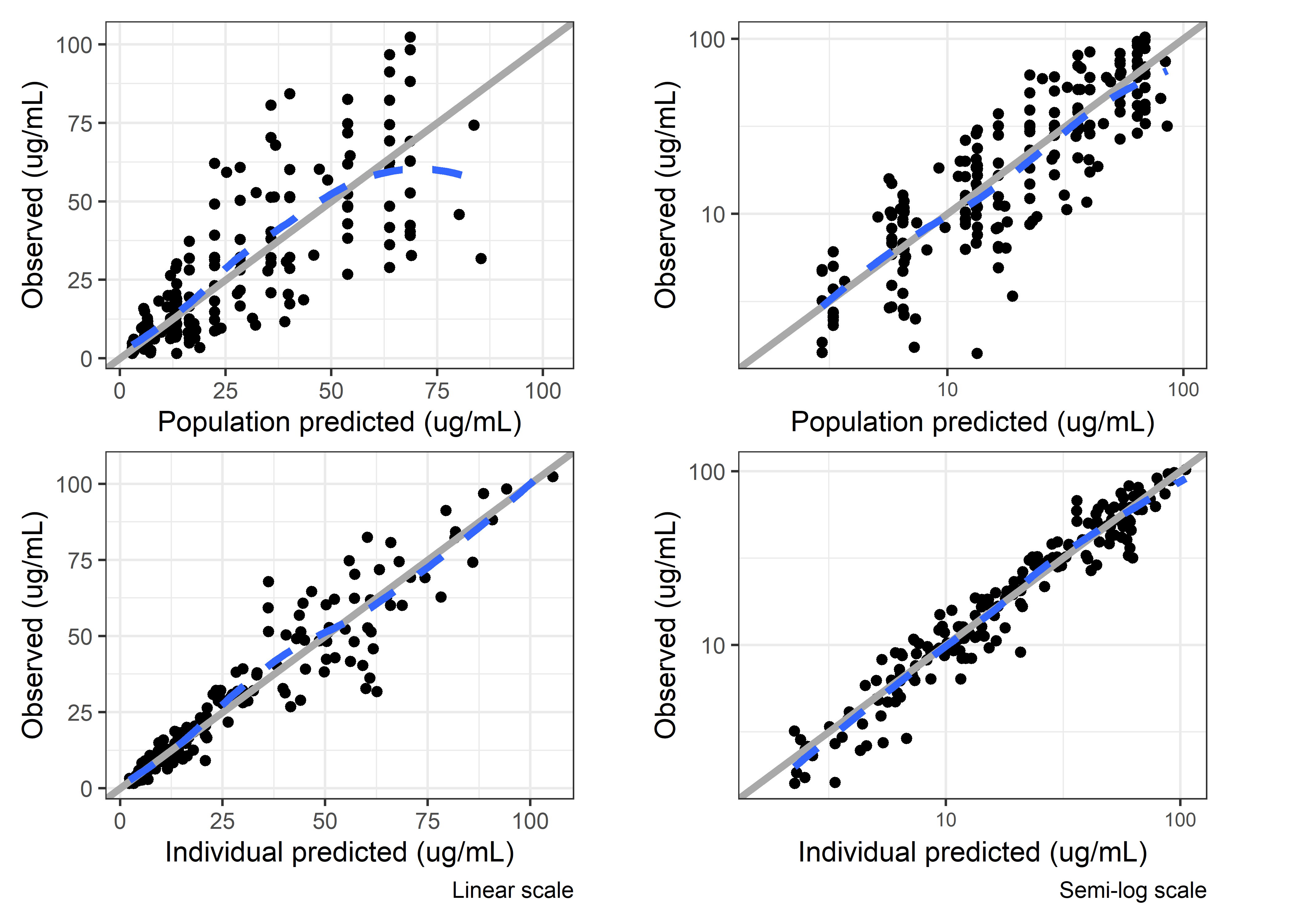

5.2 All

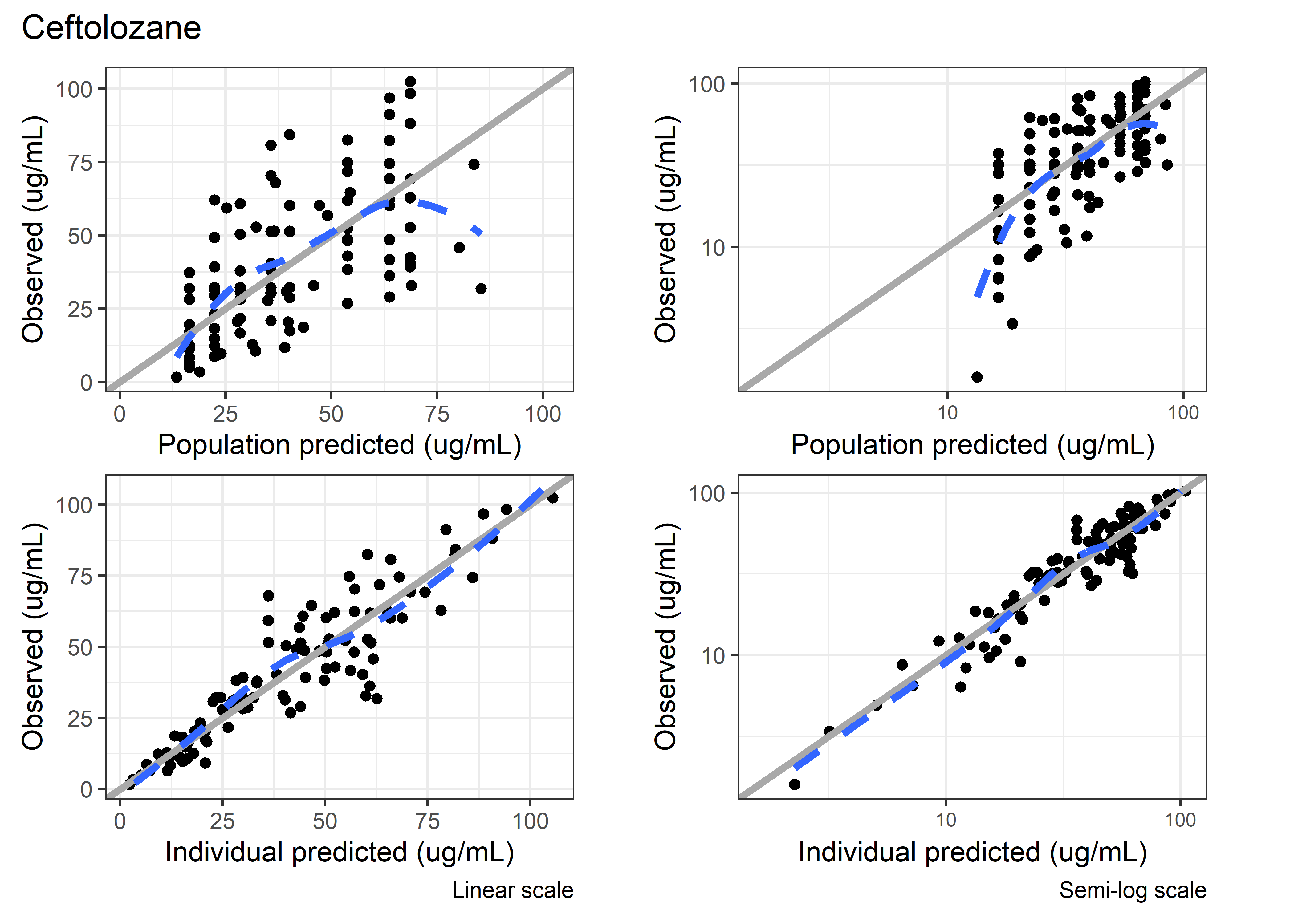

5.3 Ceftolozane

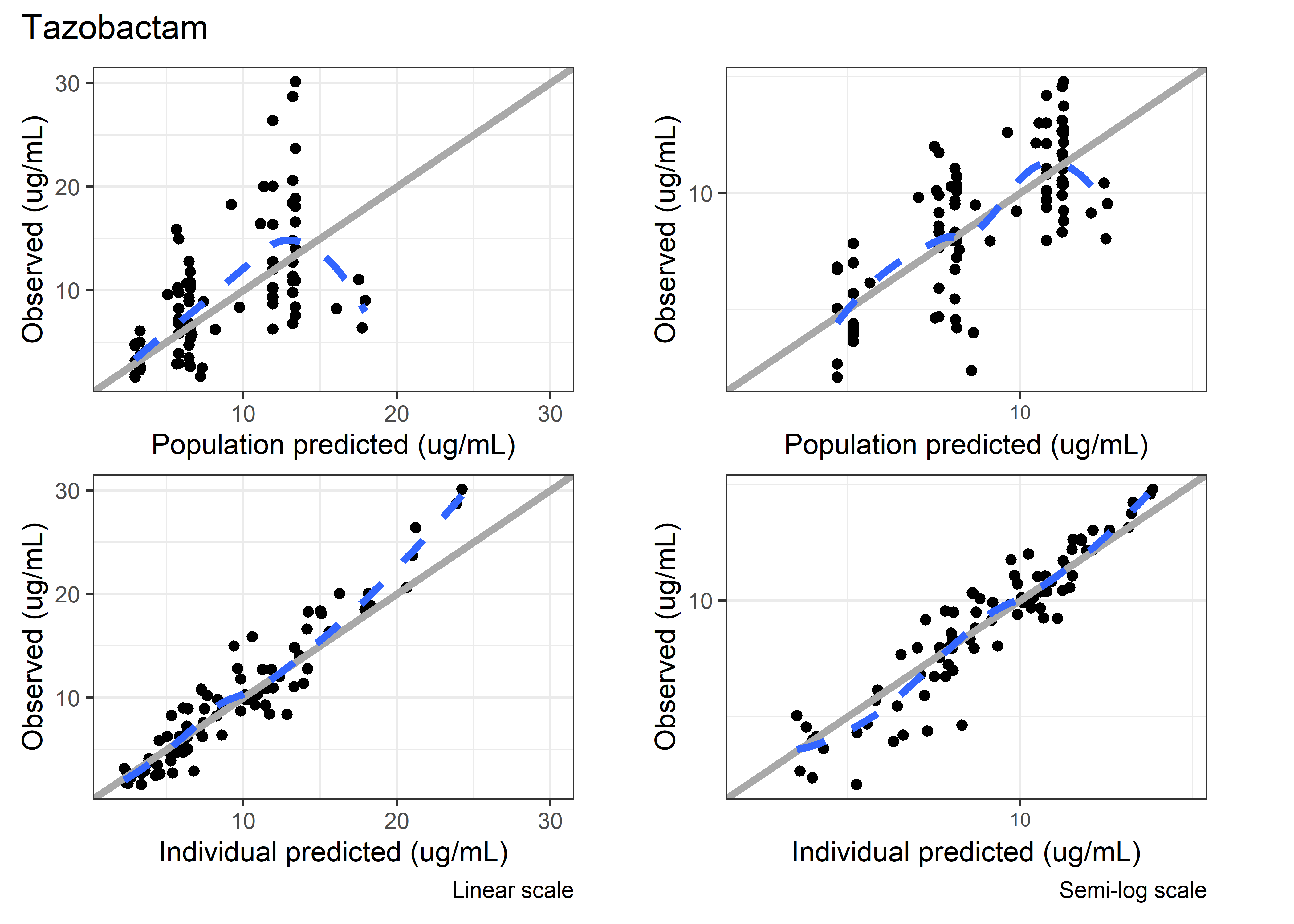

5.4 Tazobactam

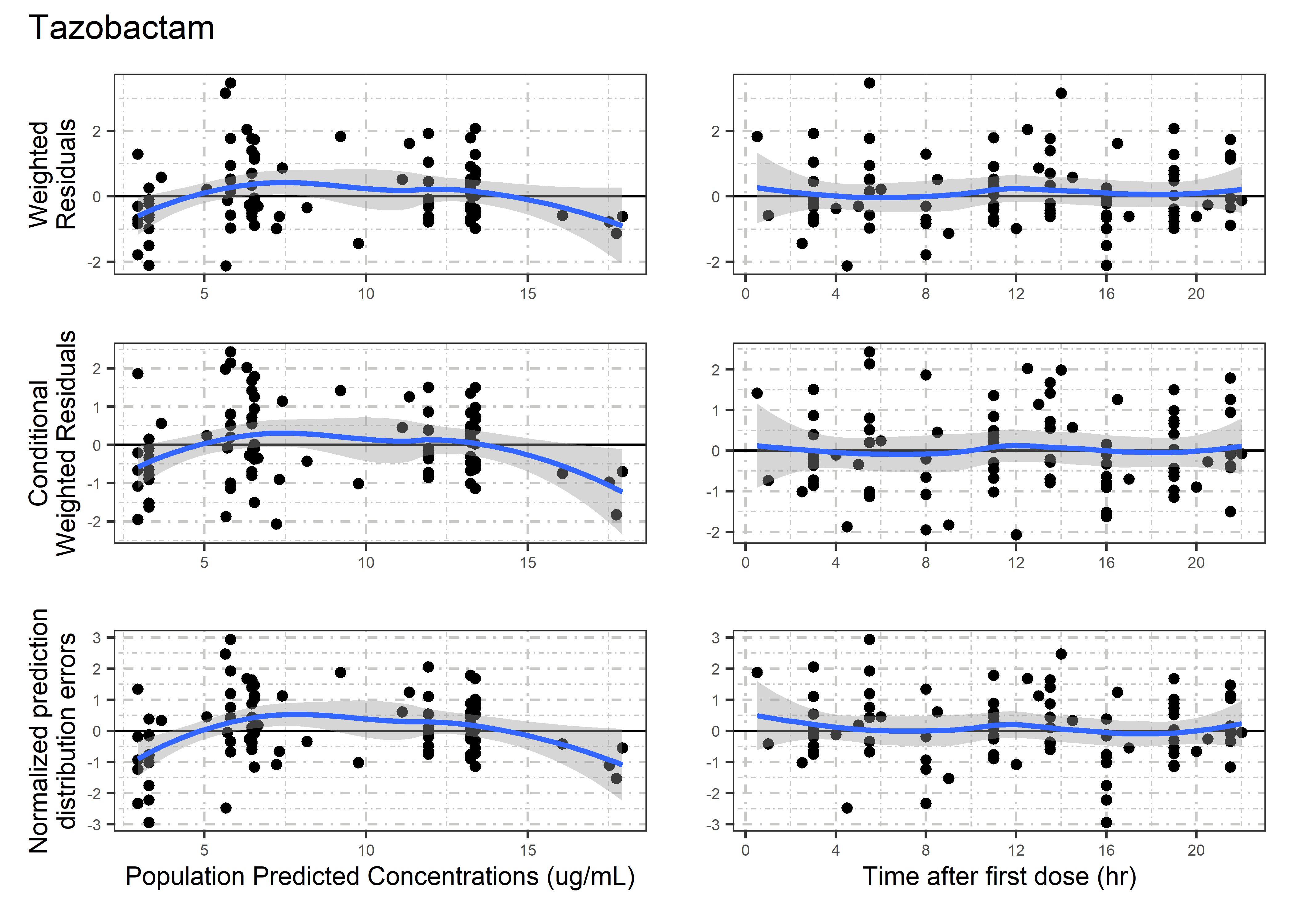

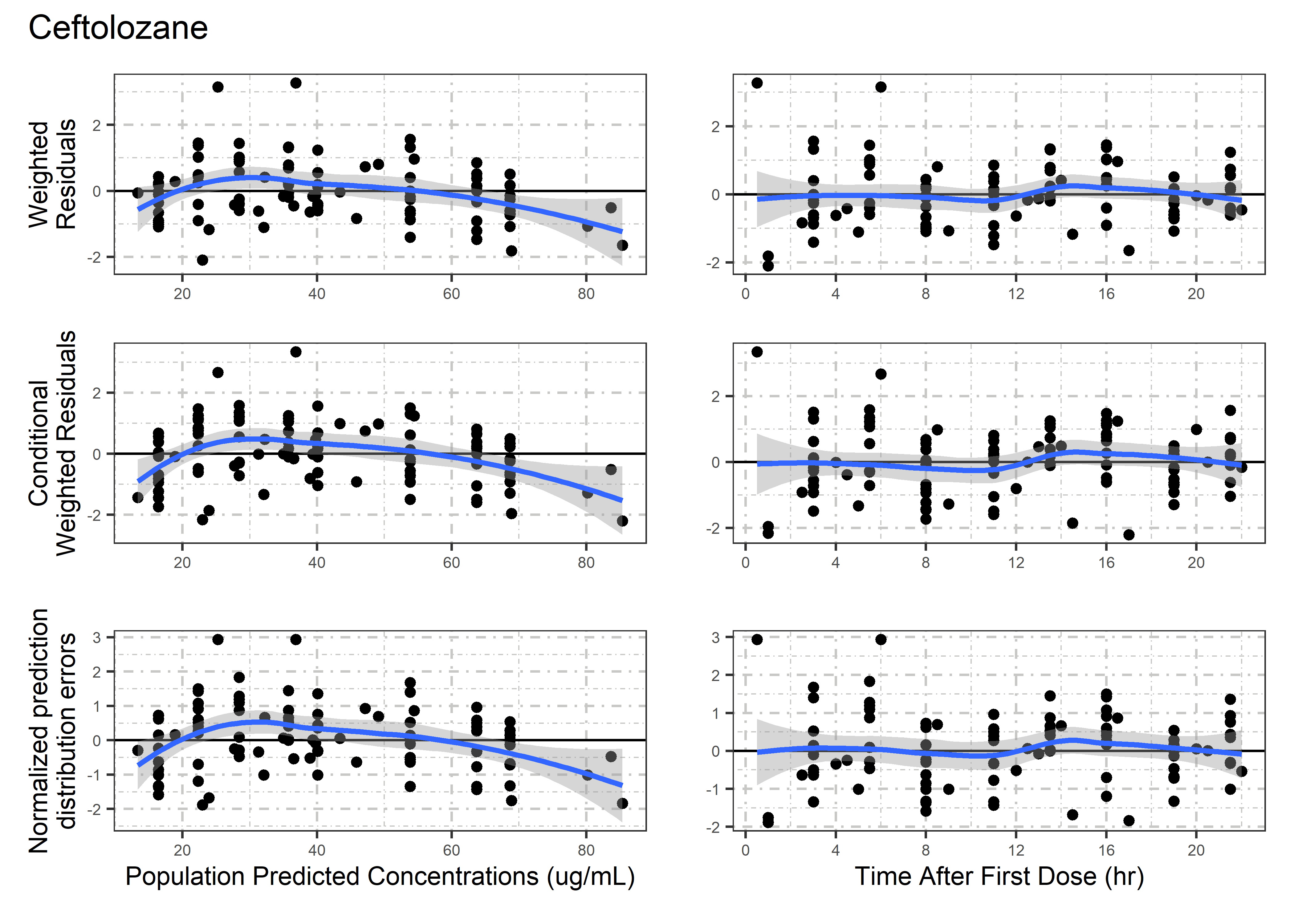

6 Residual Plots

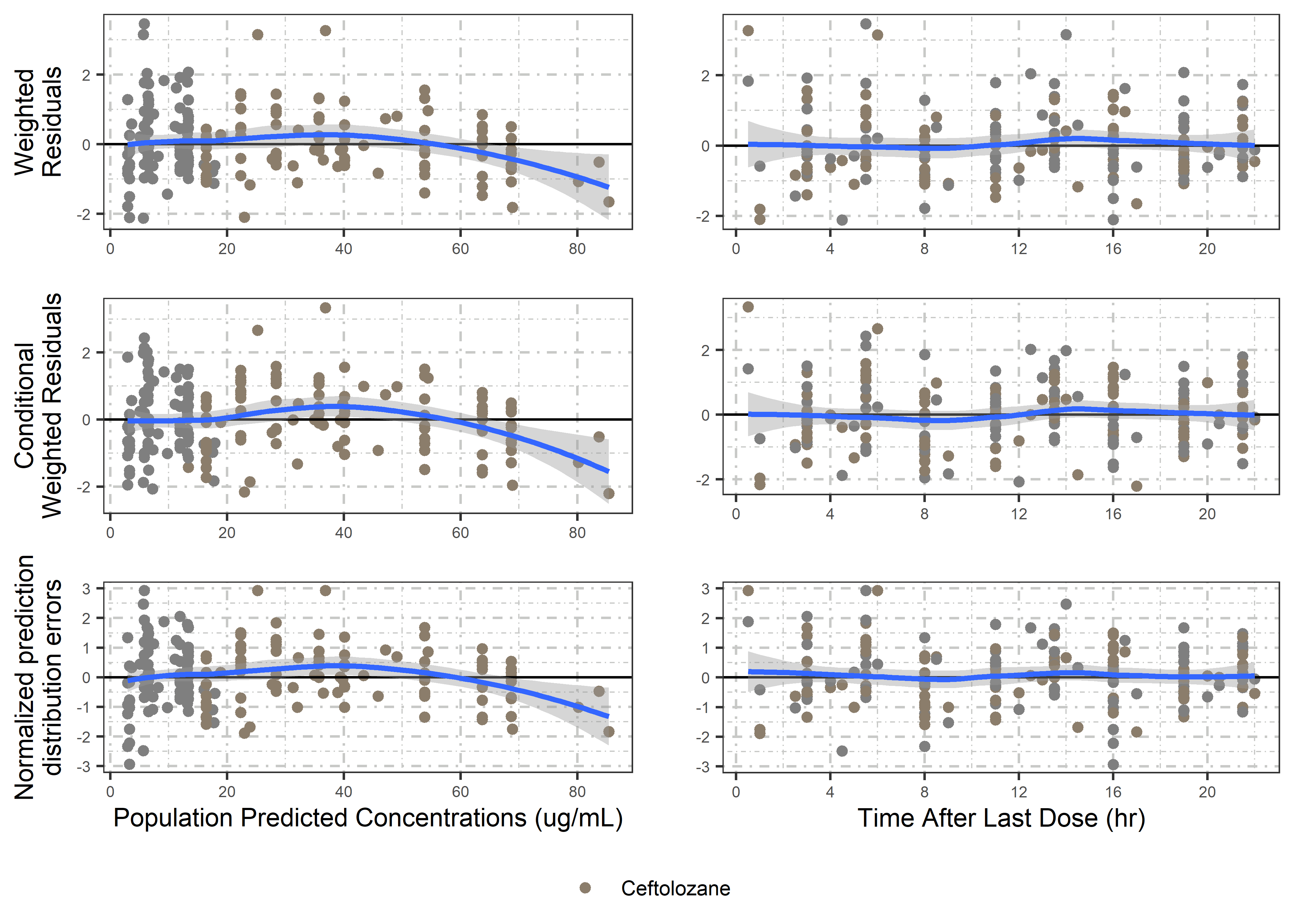

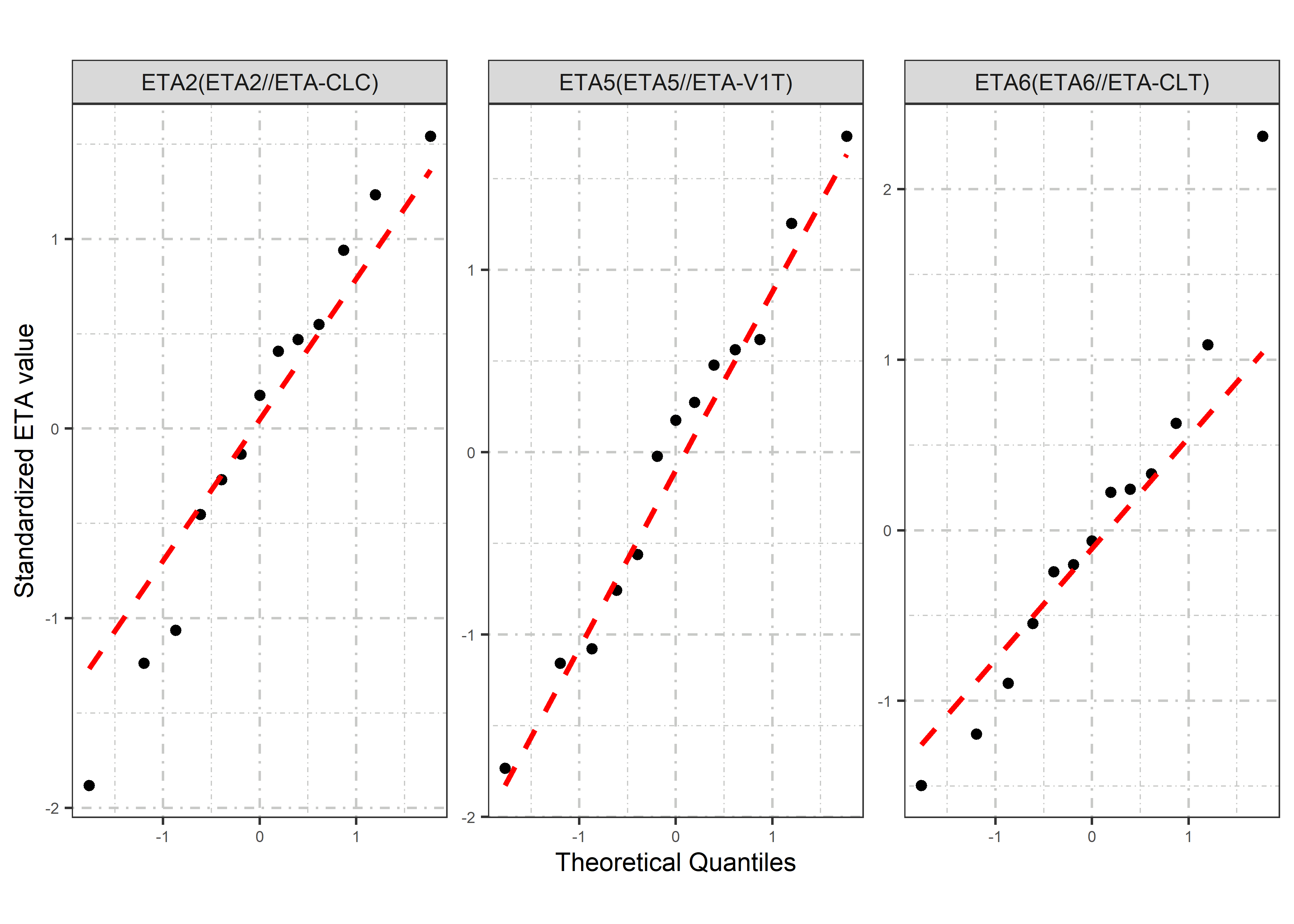

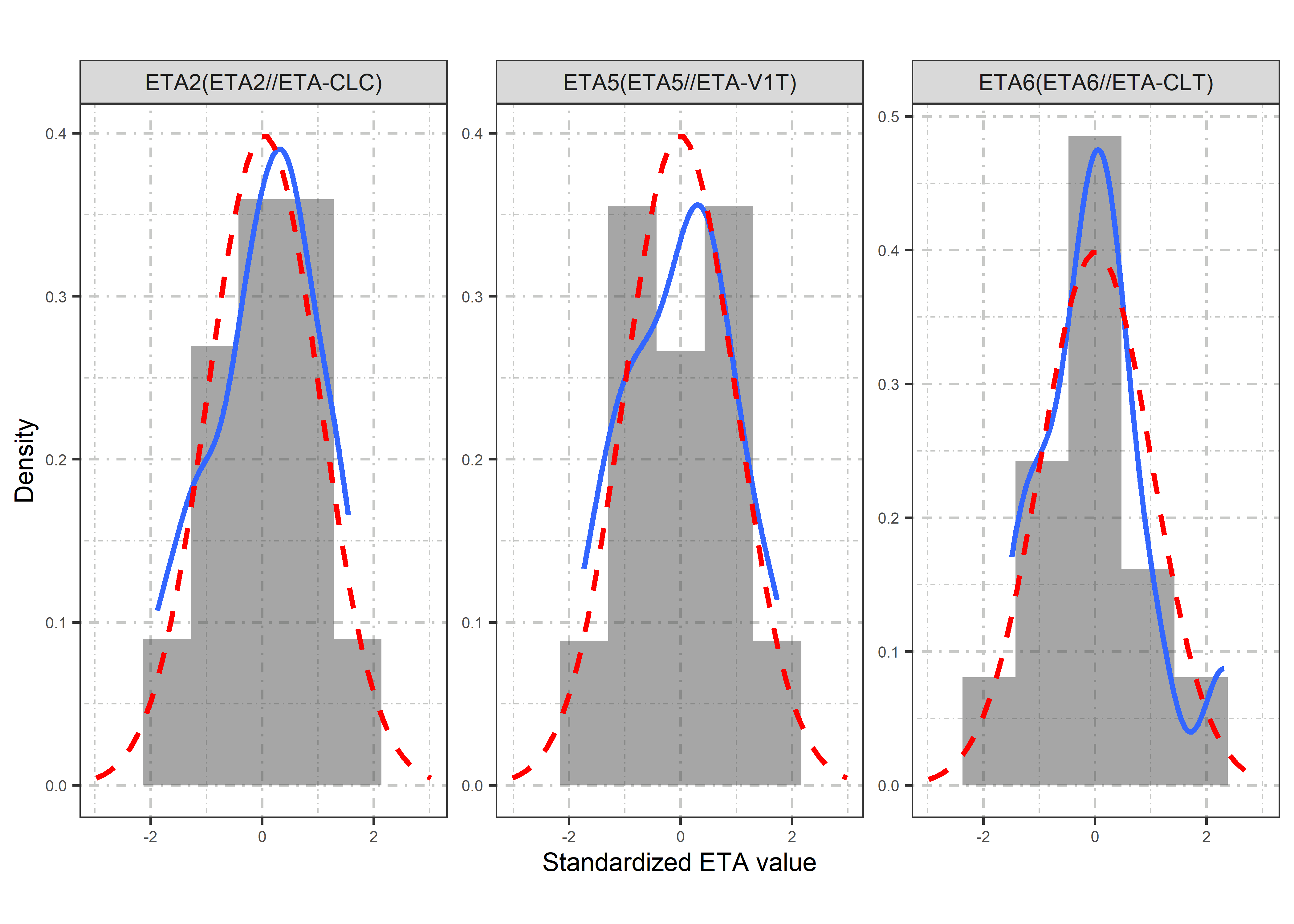

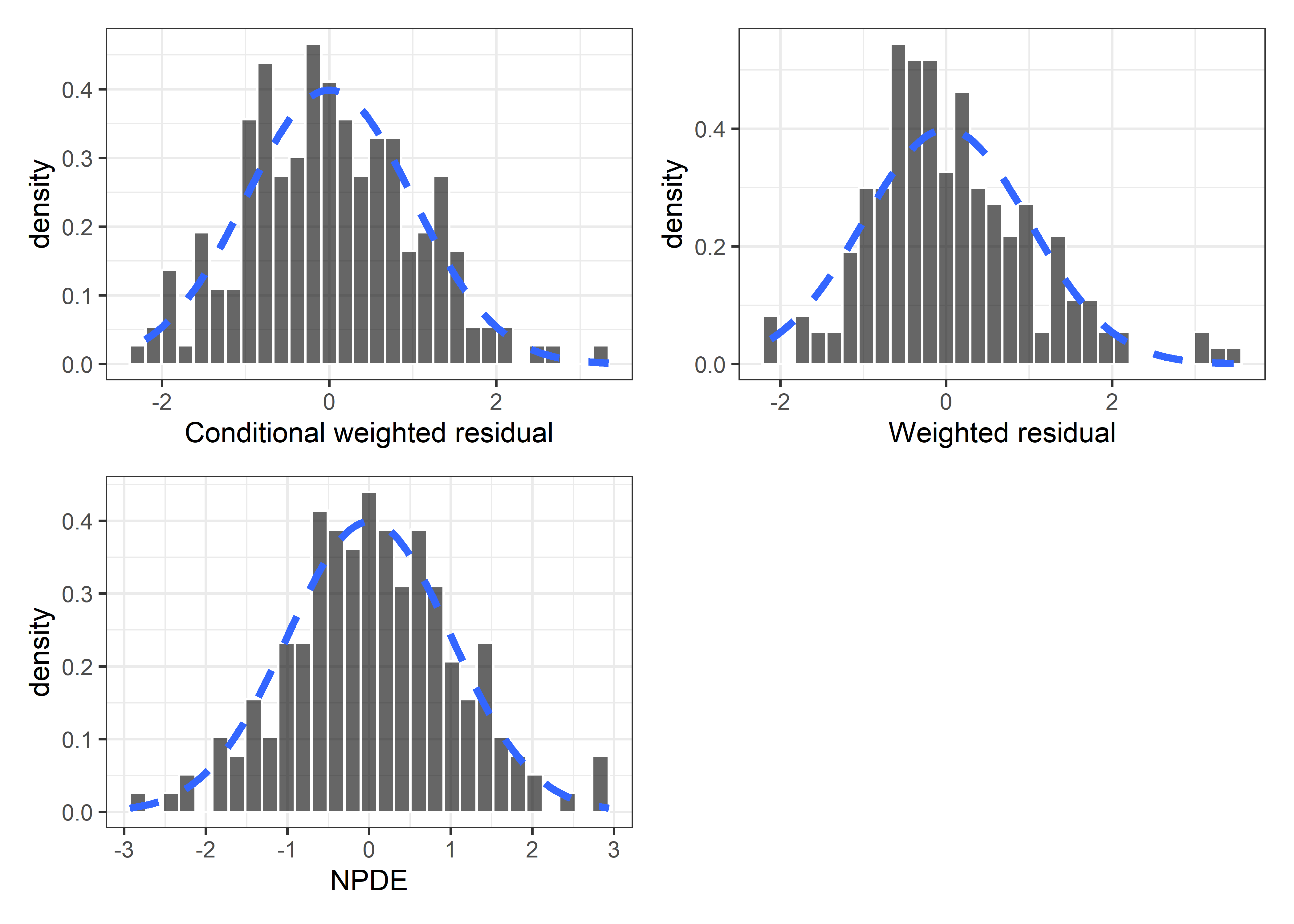

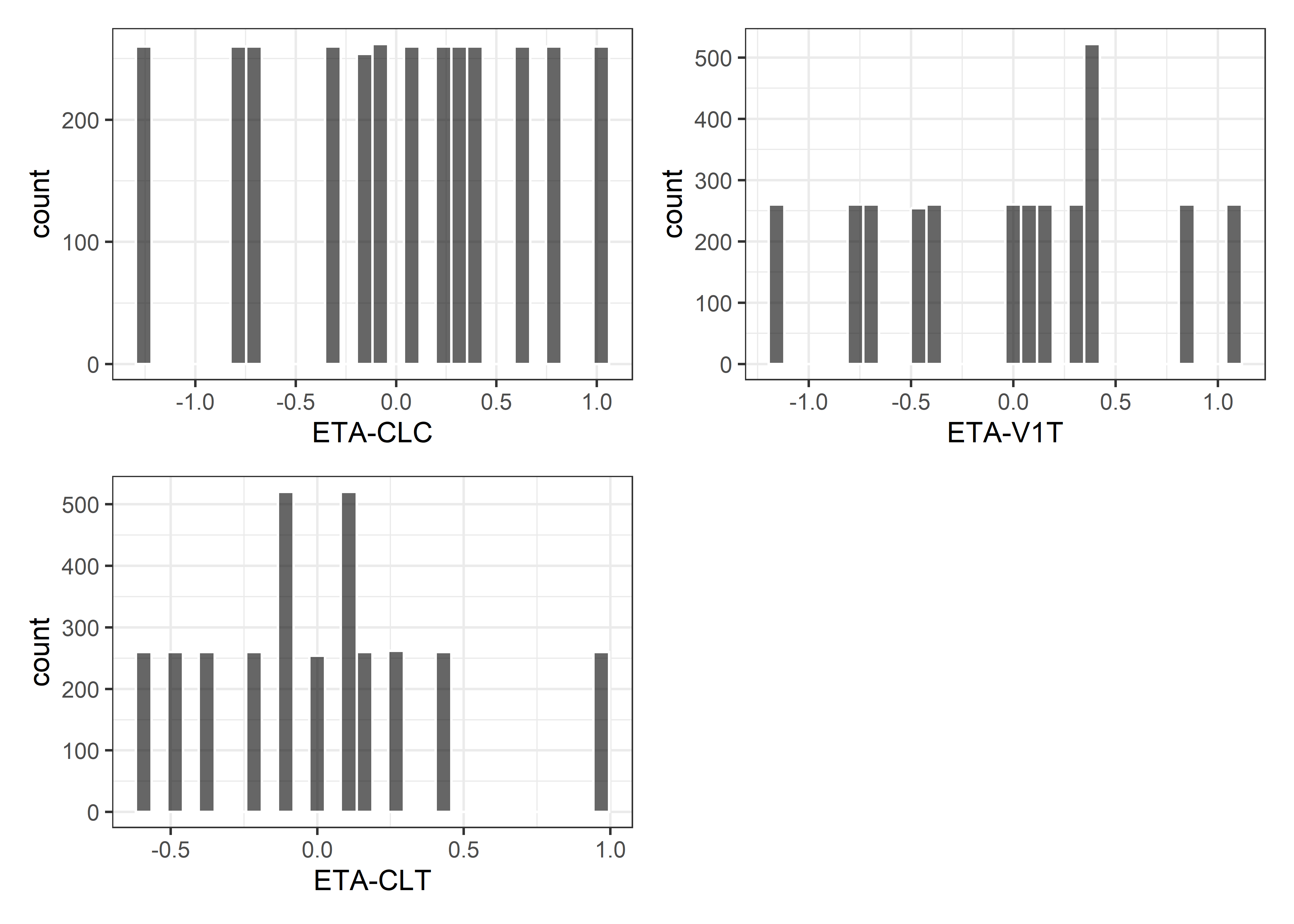

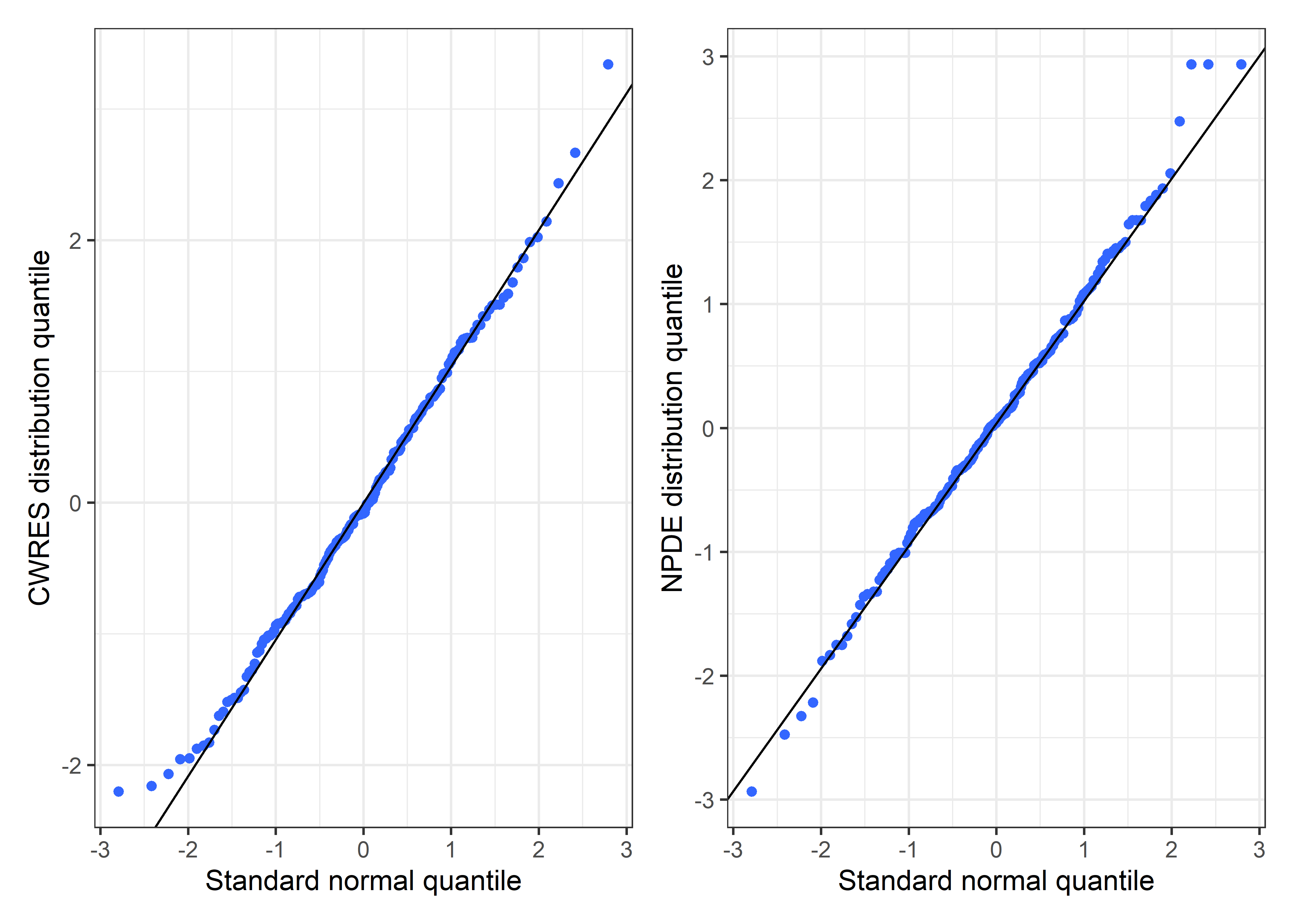

7 Histogram Plots and Q-Q Plots

8 GOF Plots

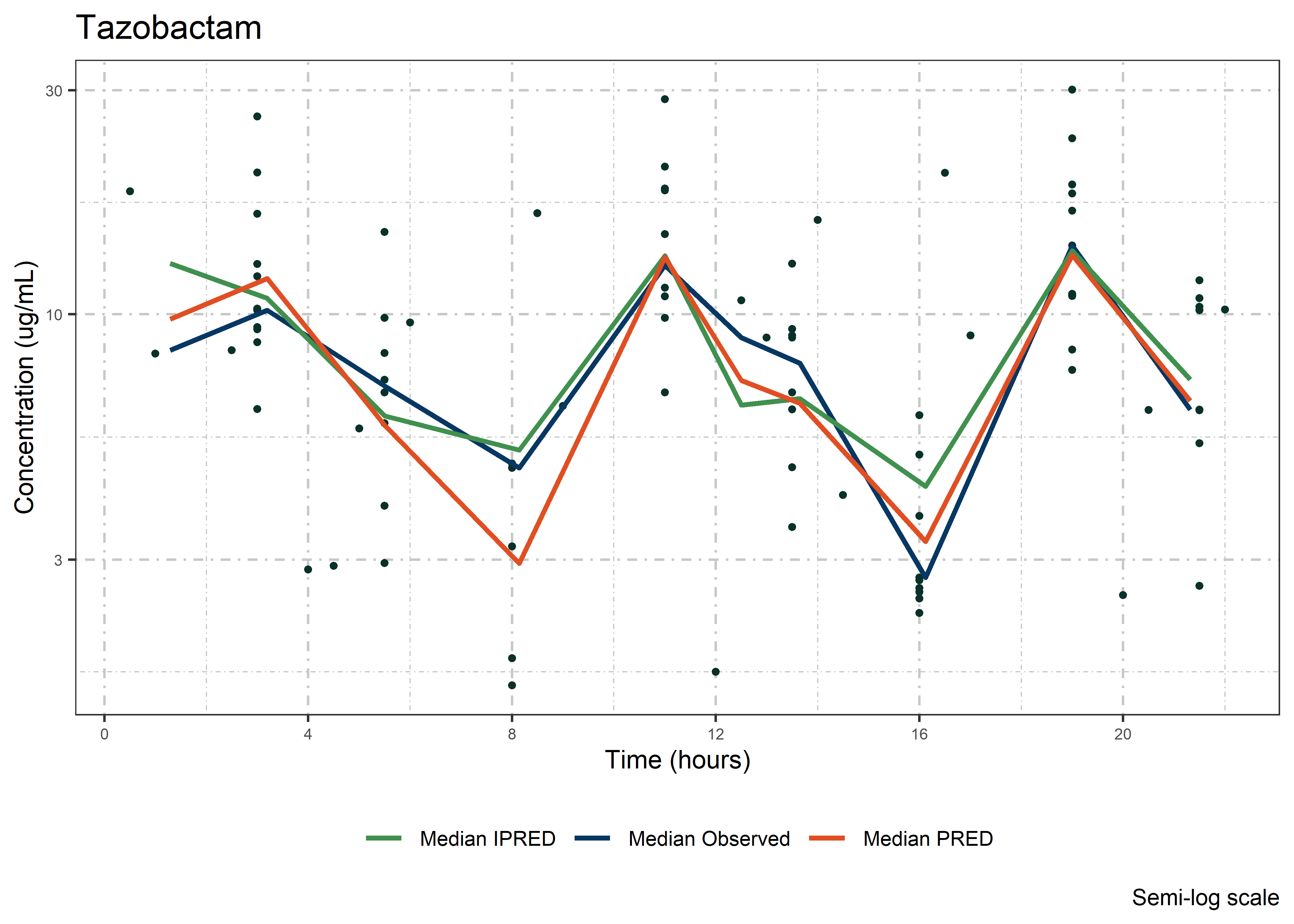

8.1 GeoMean

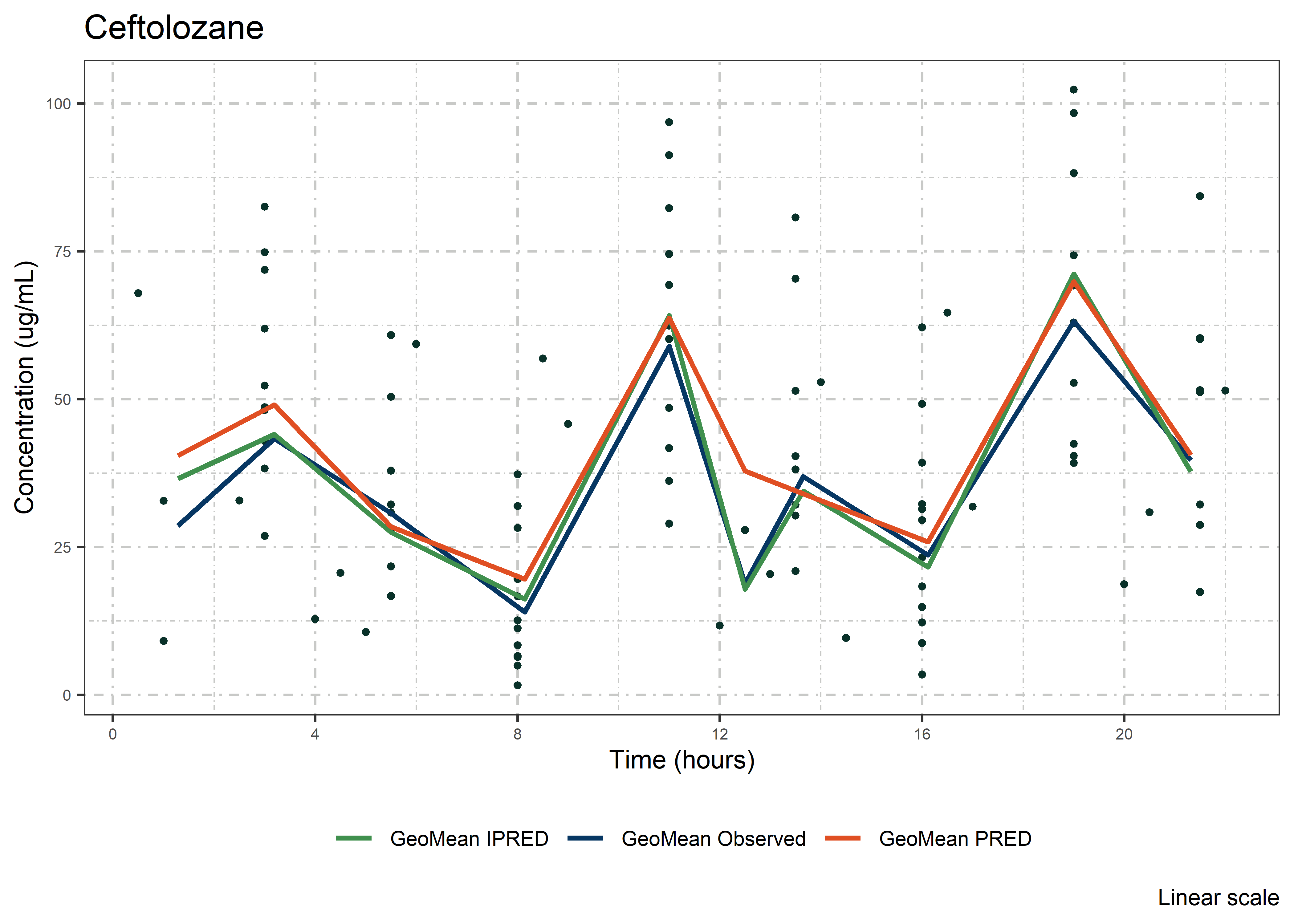

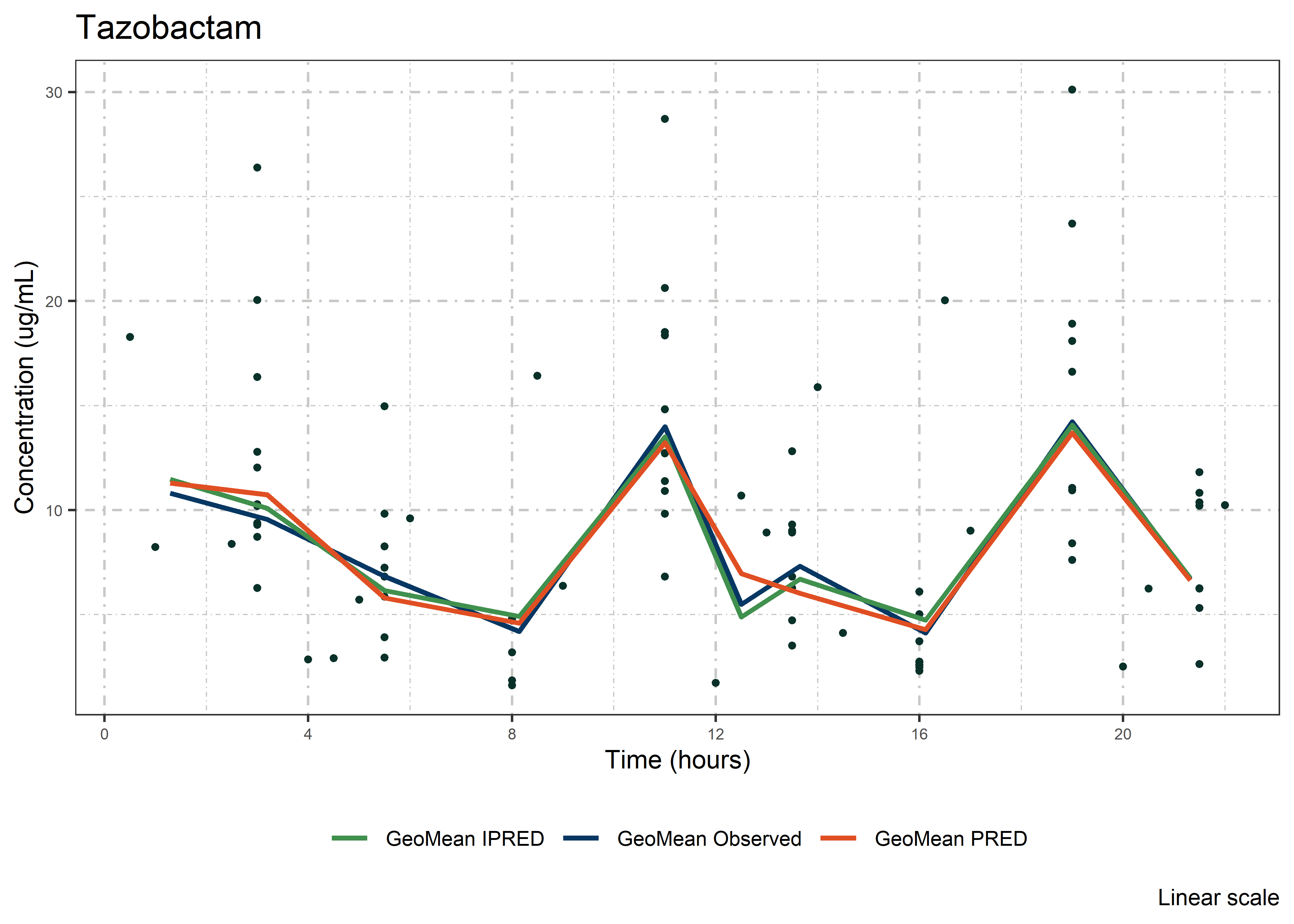

8.1.1 Linear

[[1]]


[[2]]

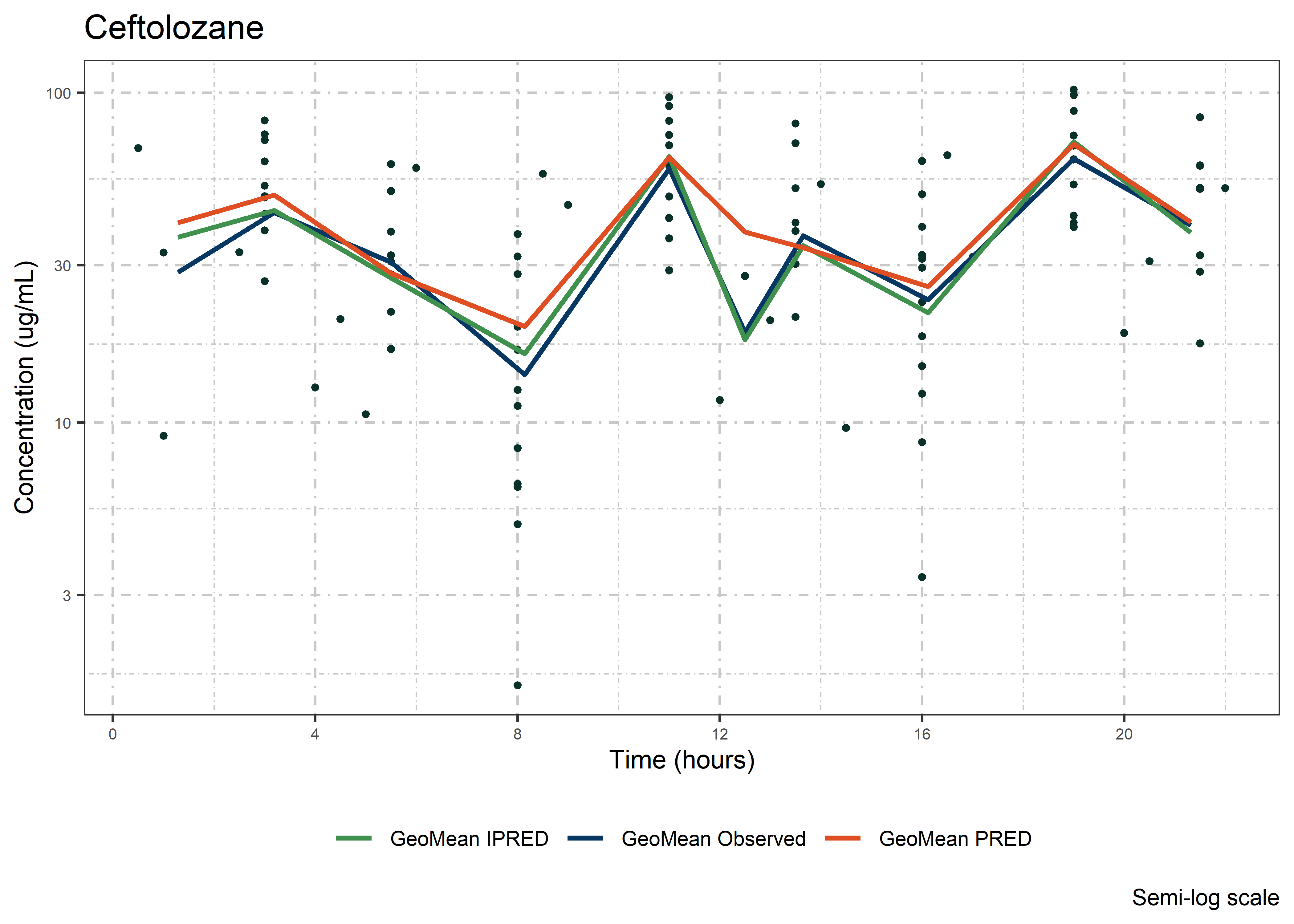

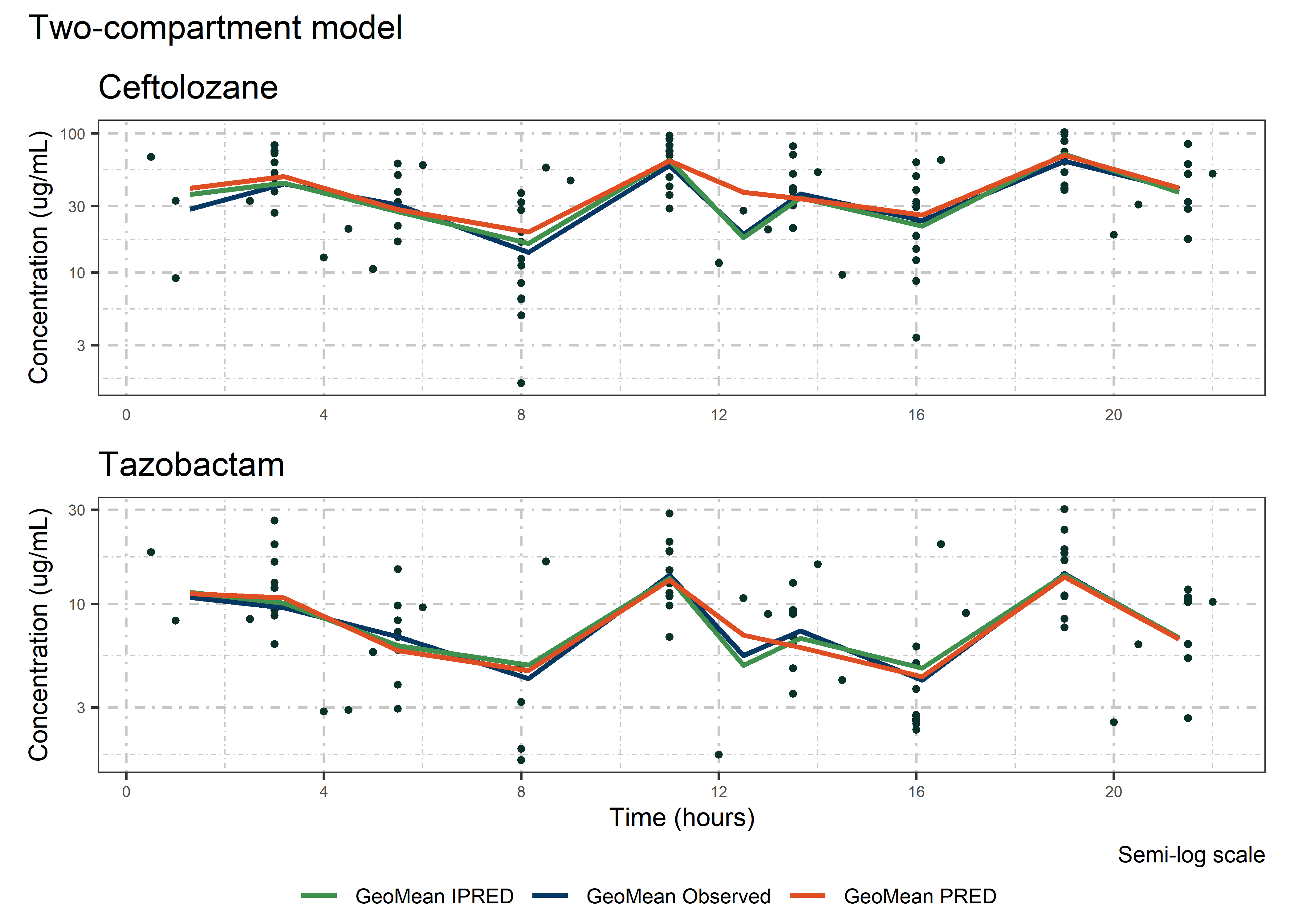

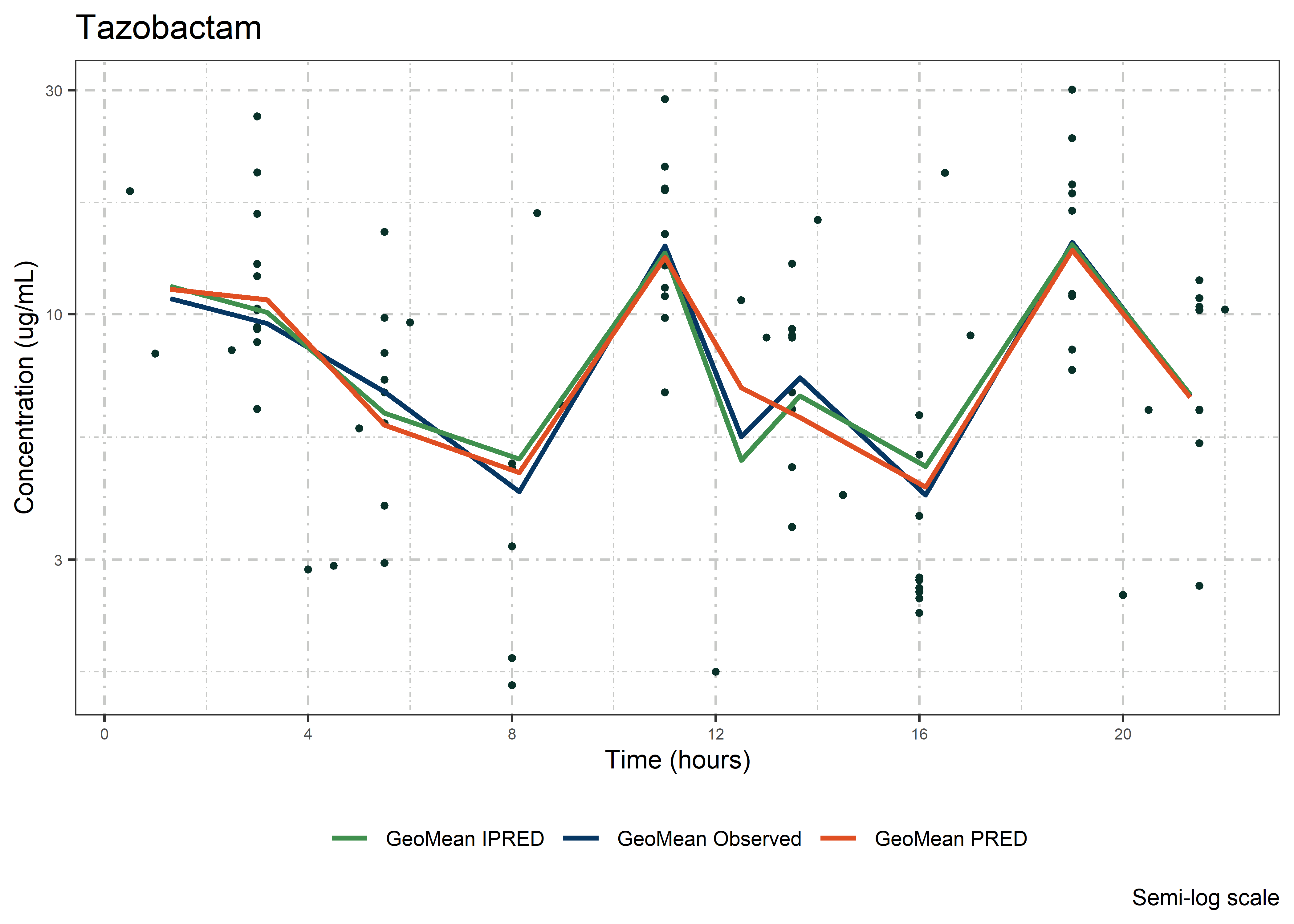

8.1.2 Semi-log

[[1]]


[[2]]

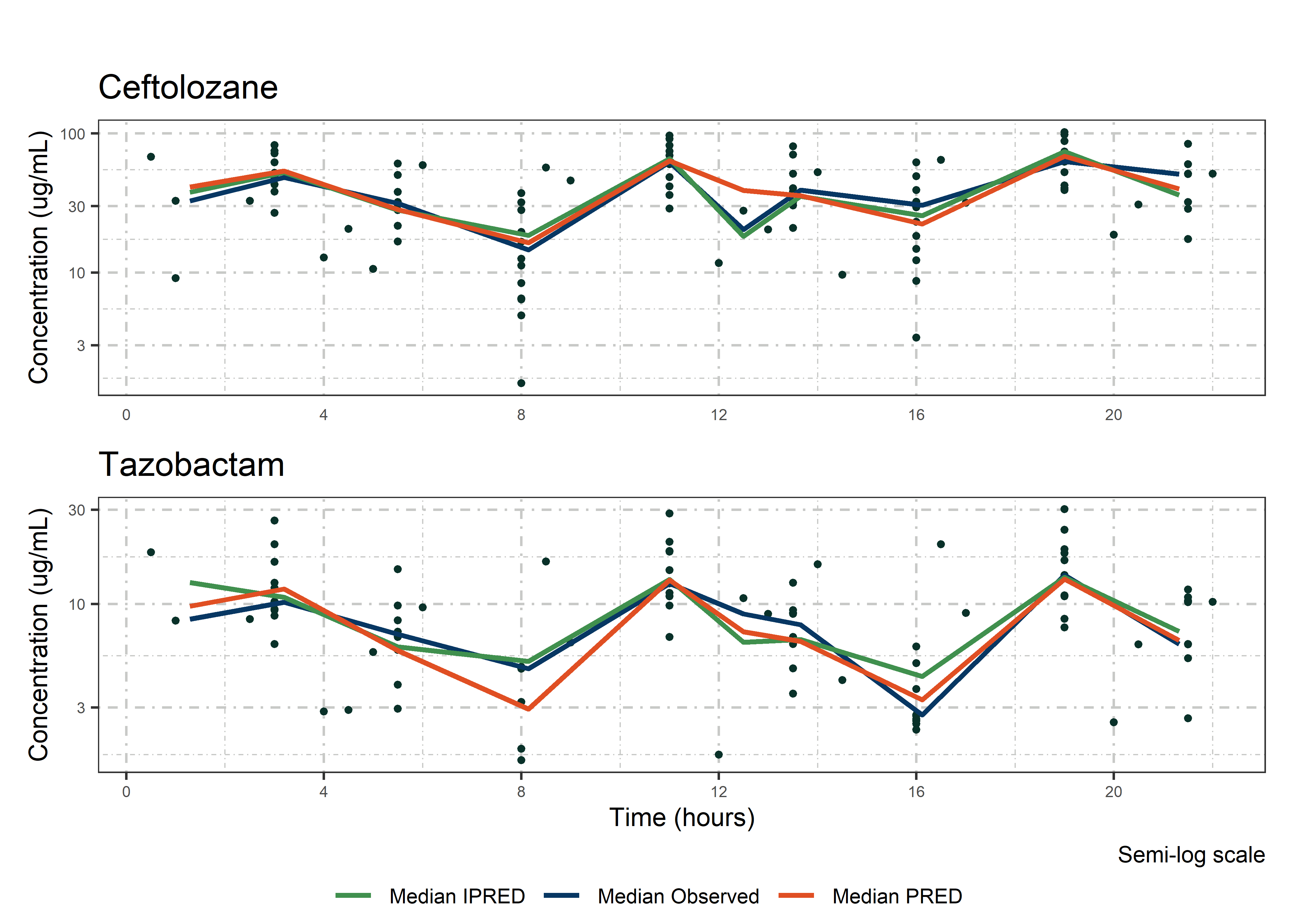

8.2 Median

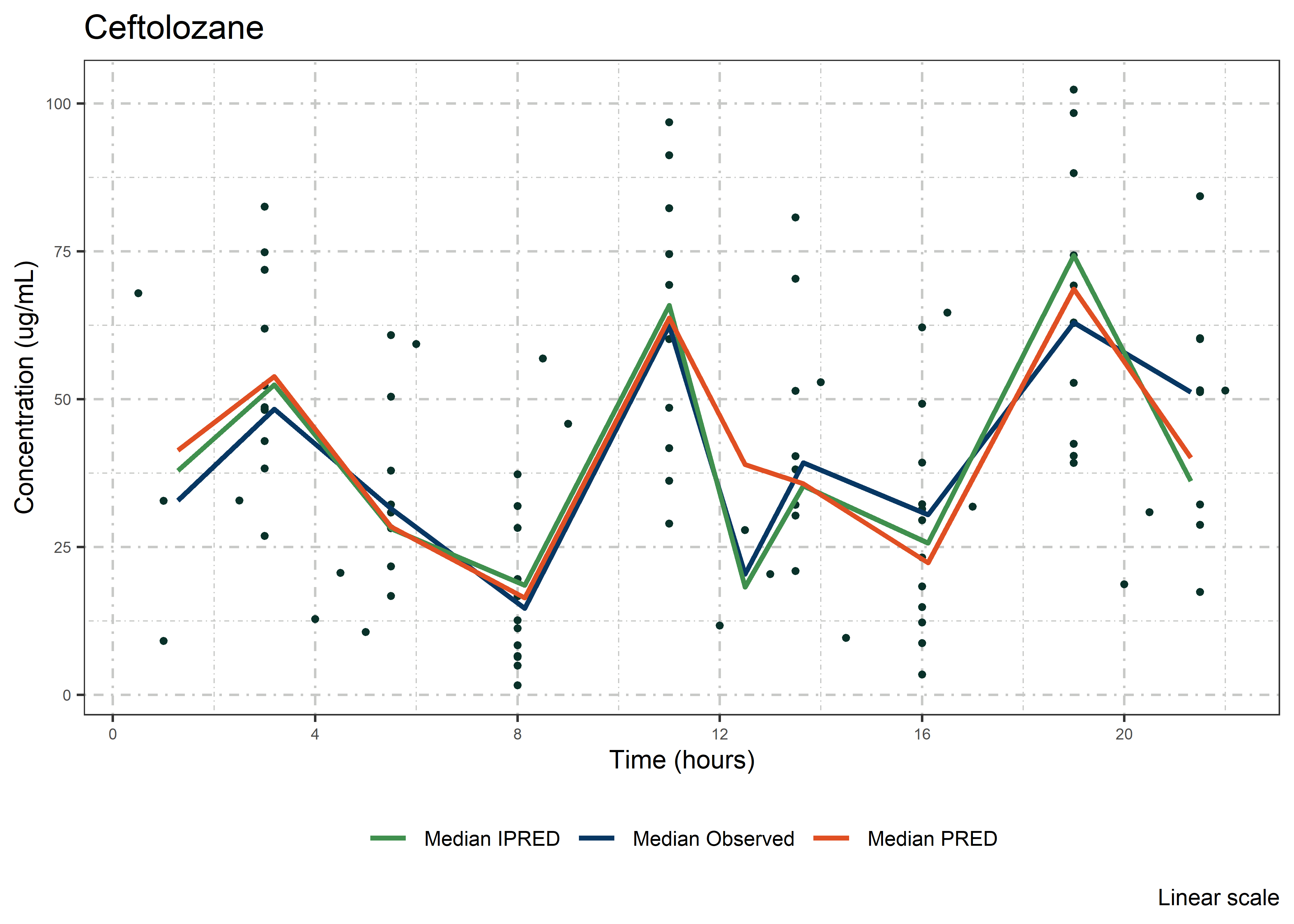

8.2.1 Linear

[[1]]


[[2]]

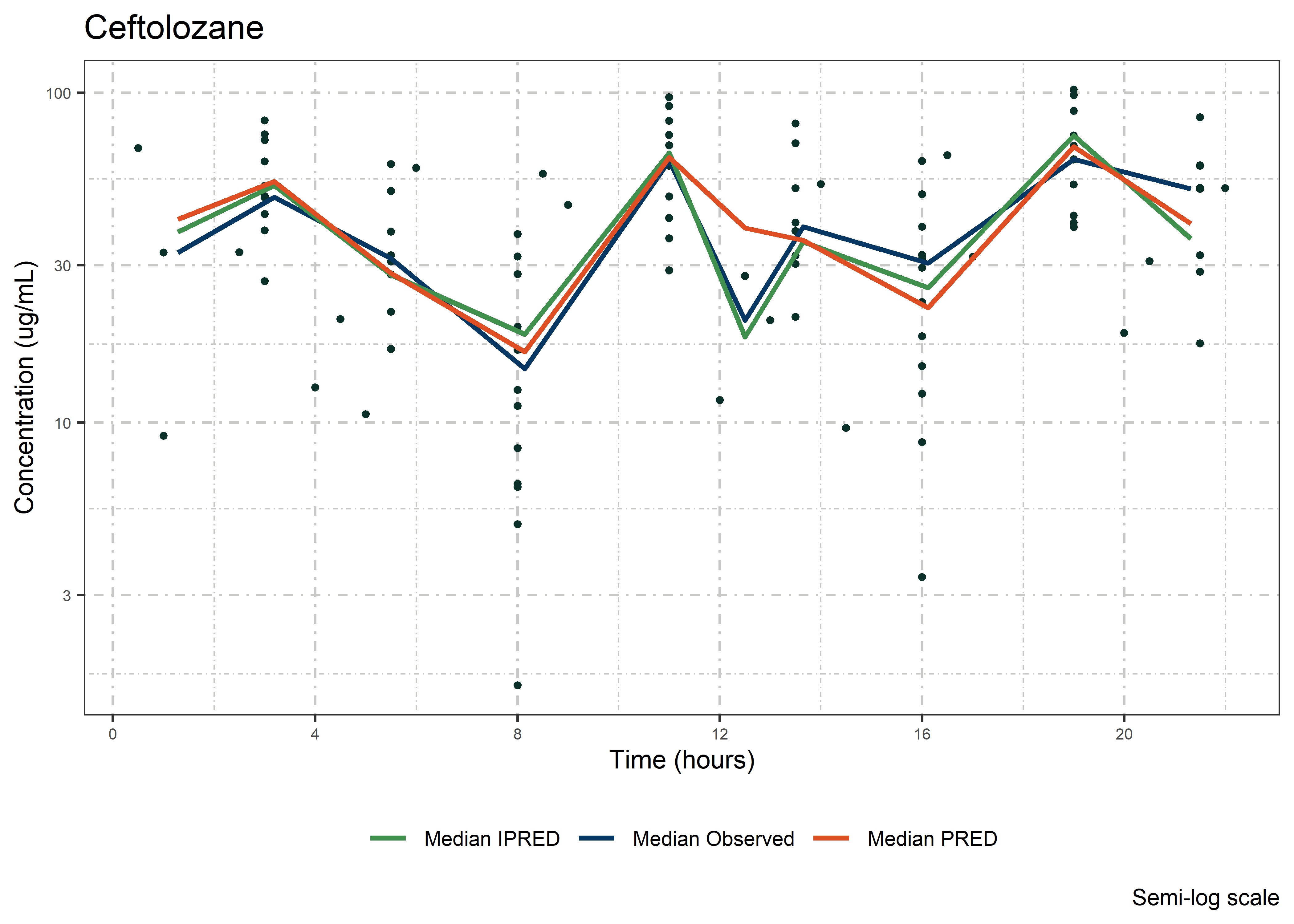

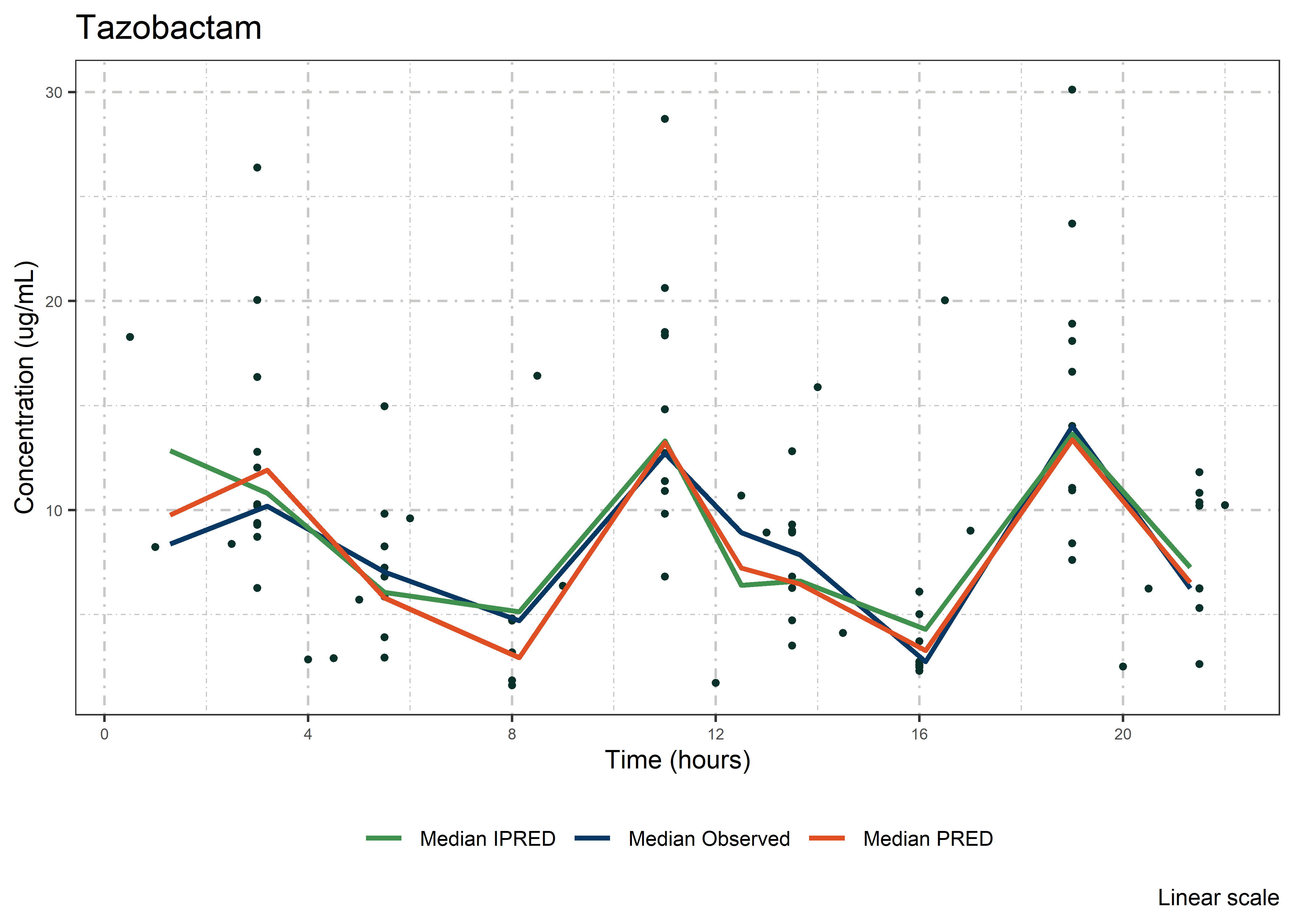

8.2.2 Semi-log

[[1]]


[[2]]

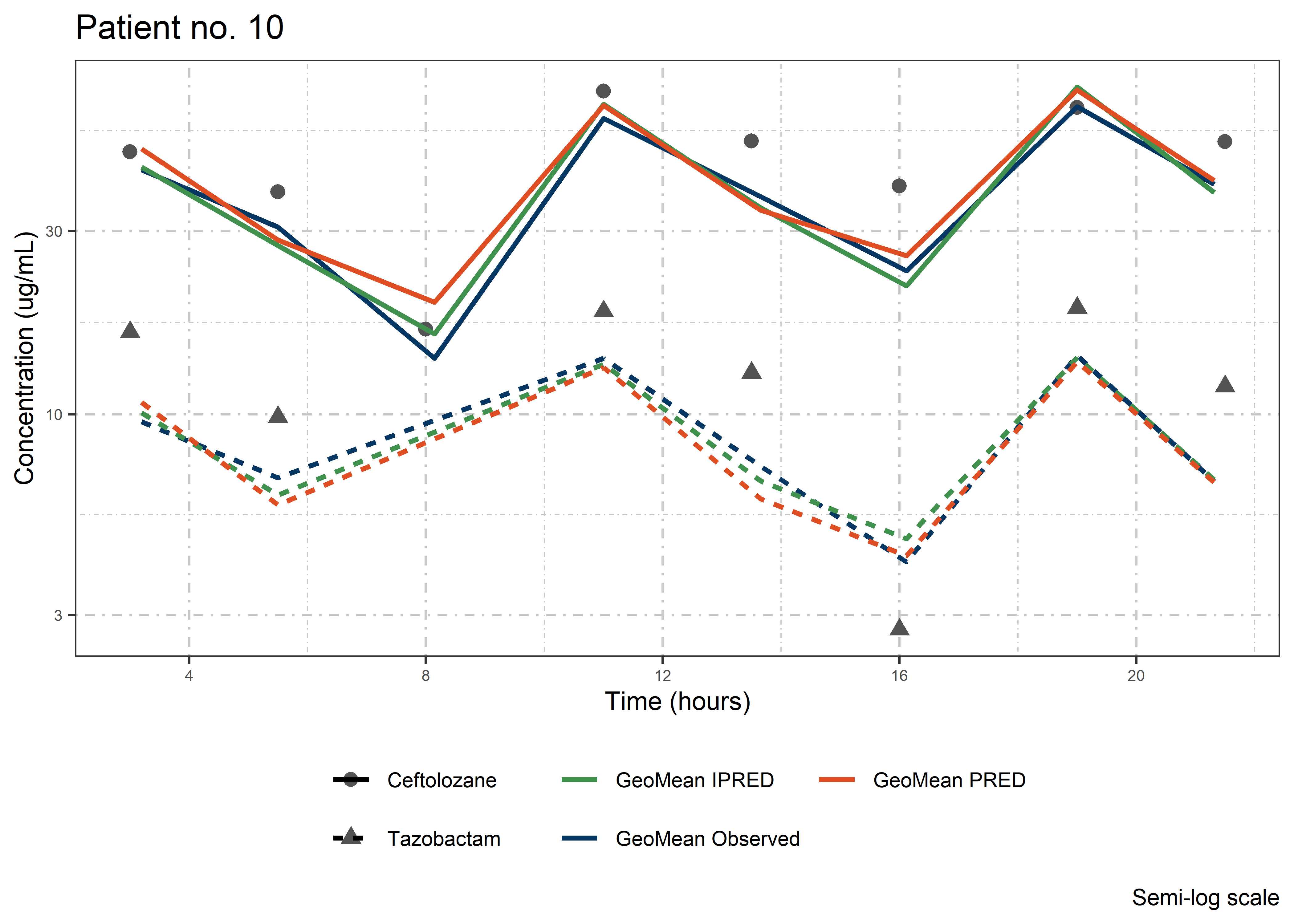

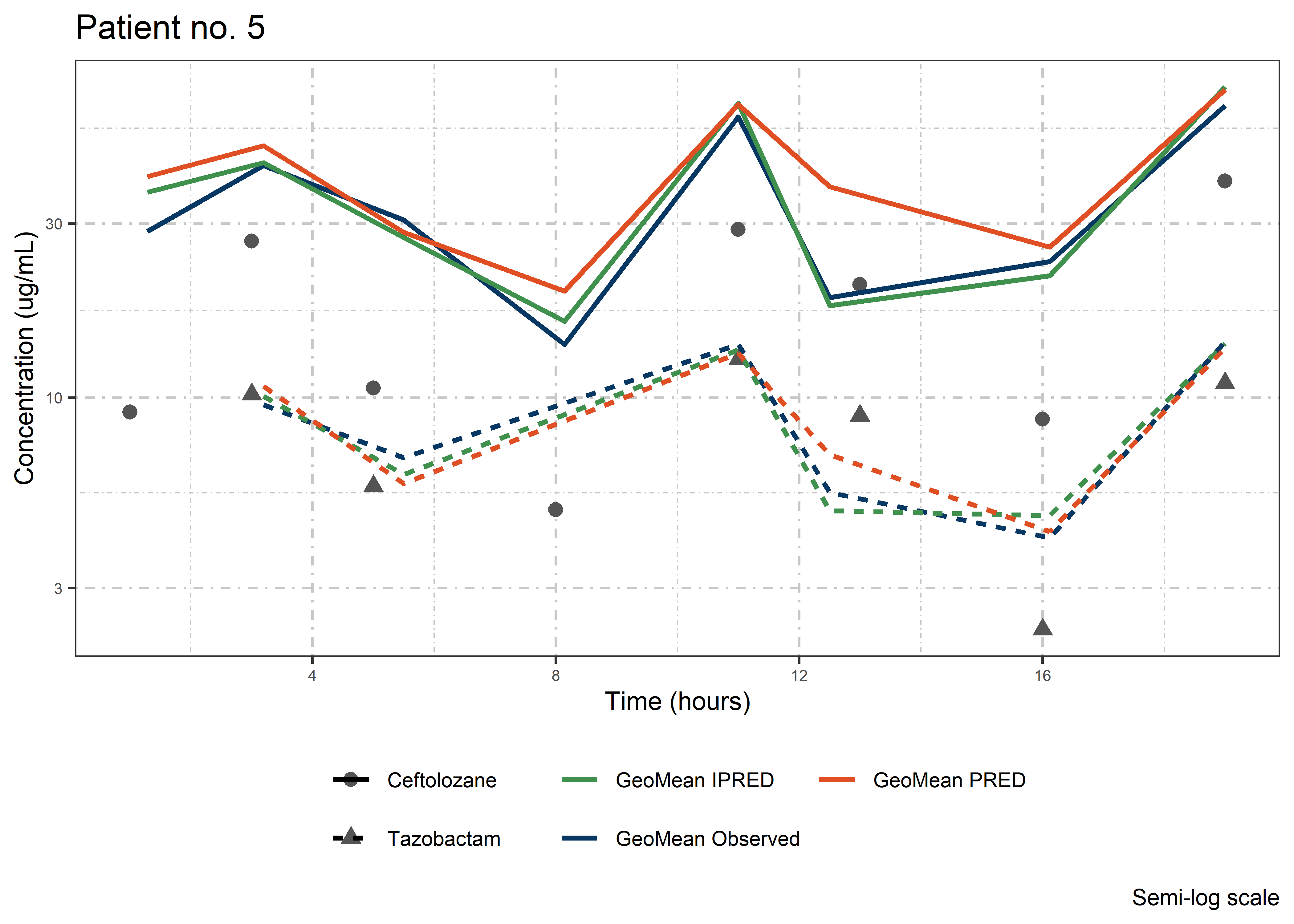

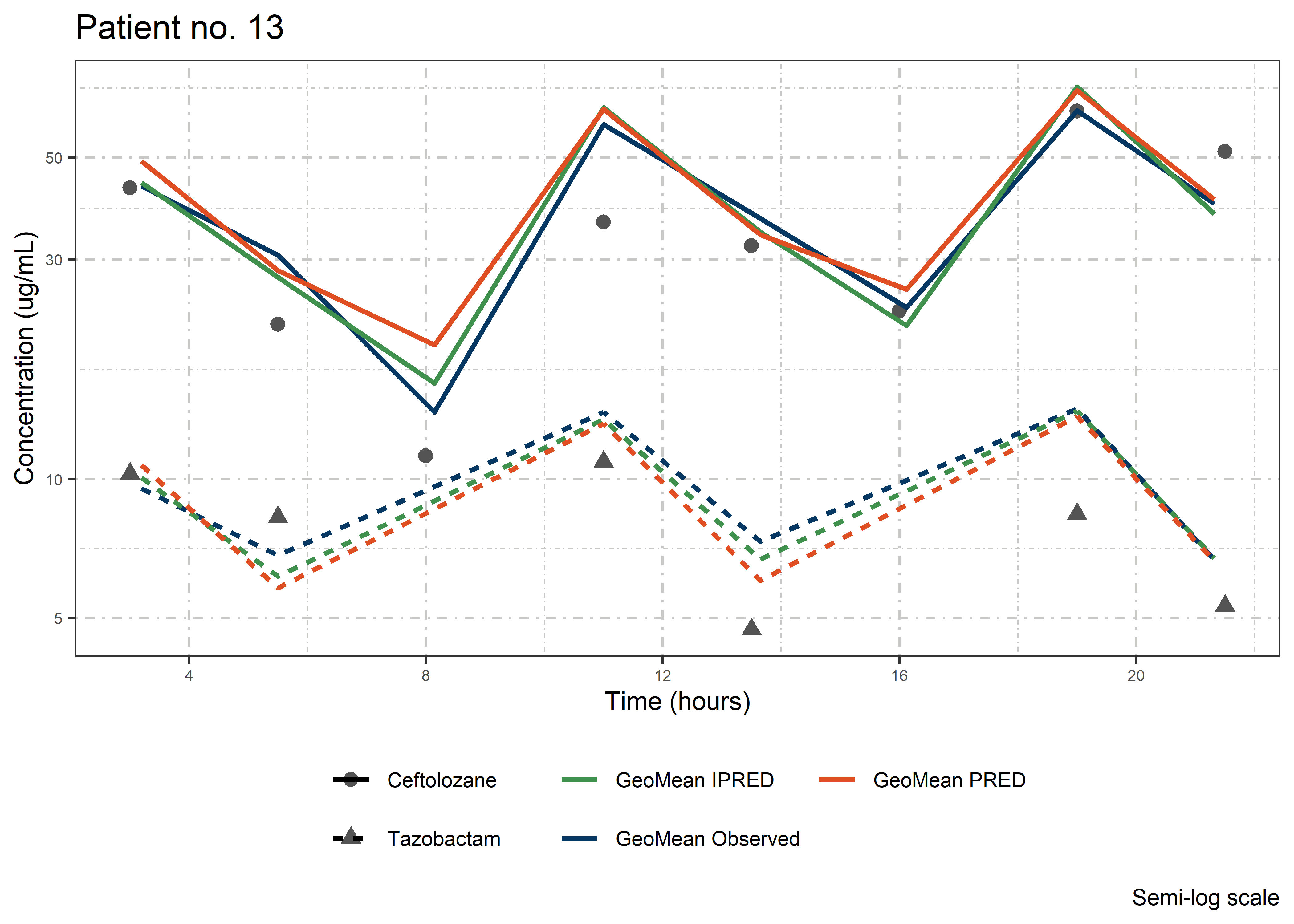

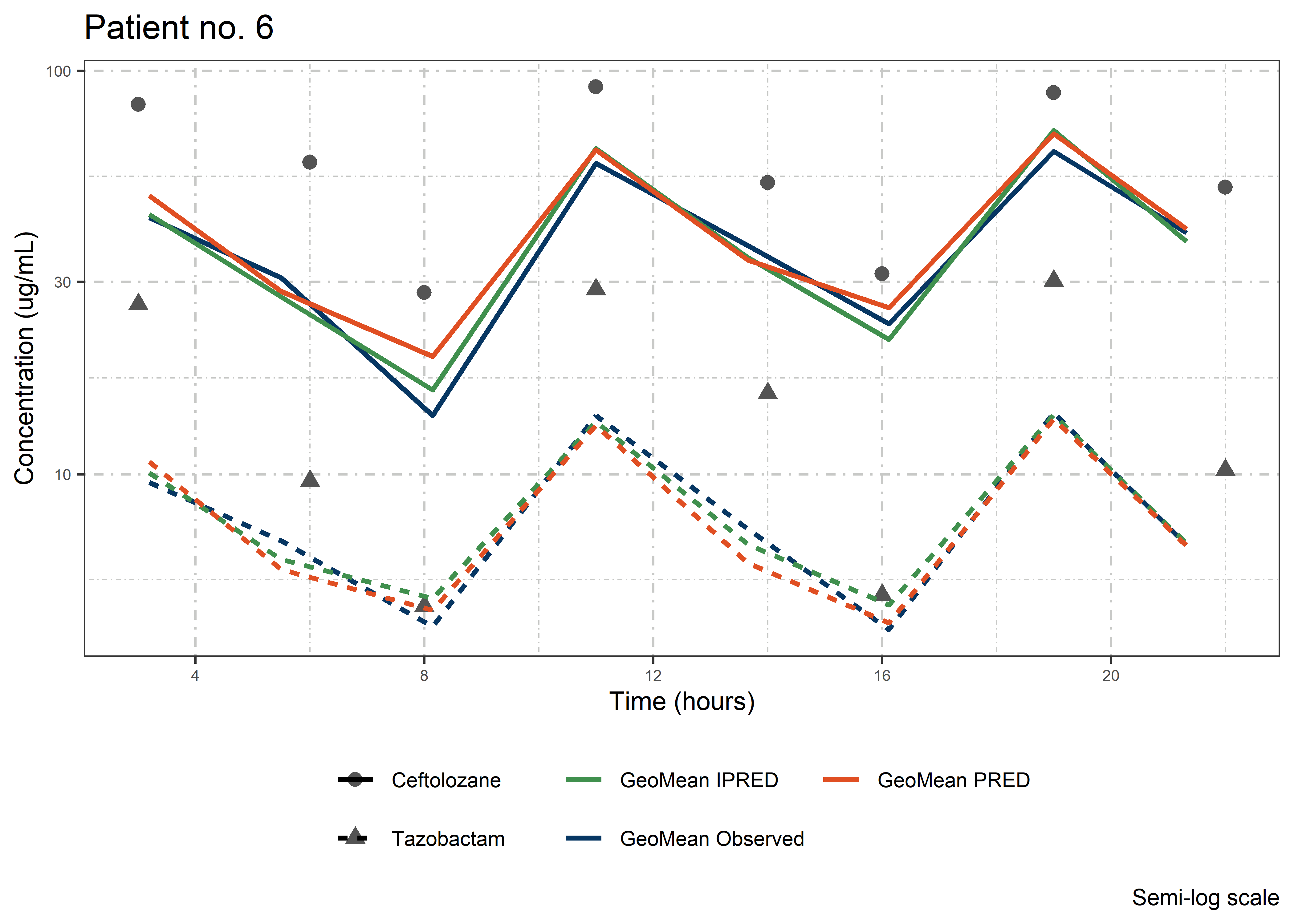

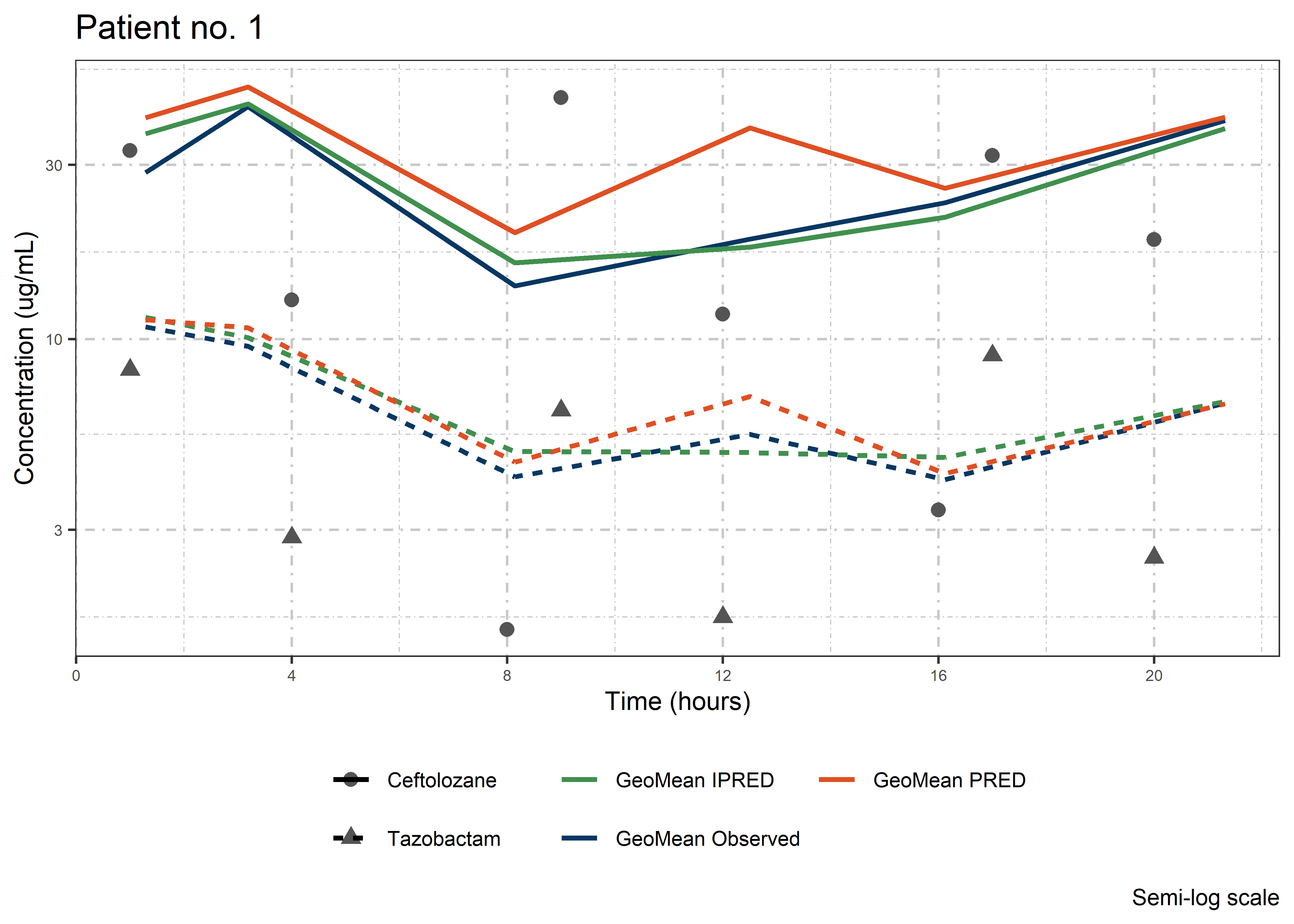

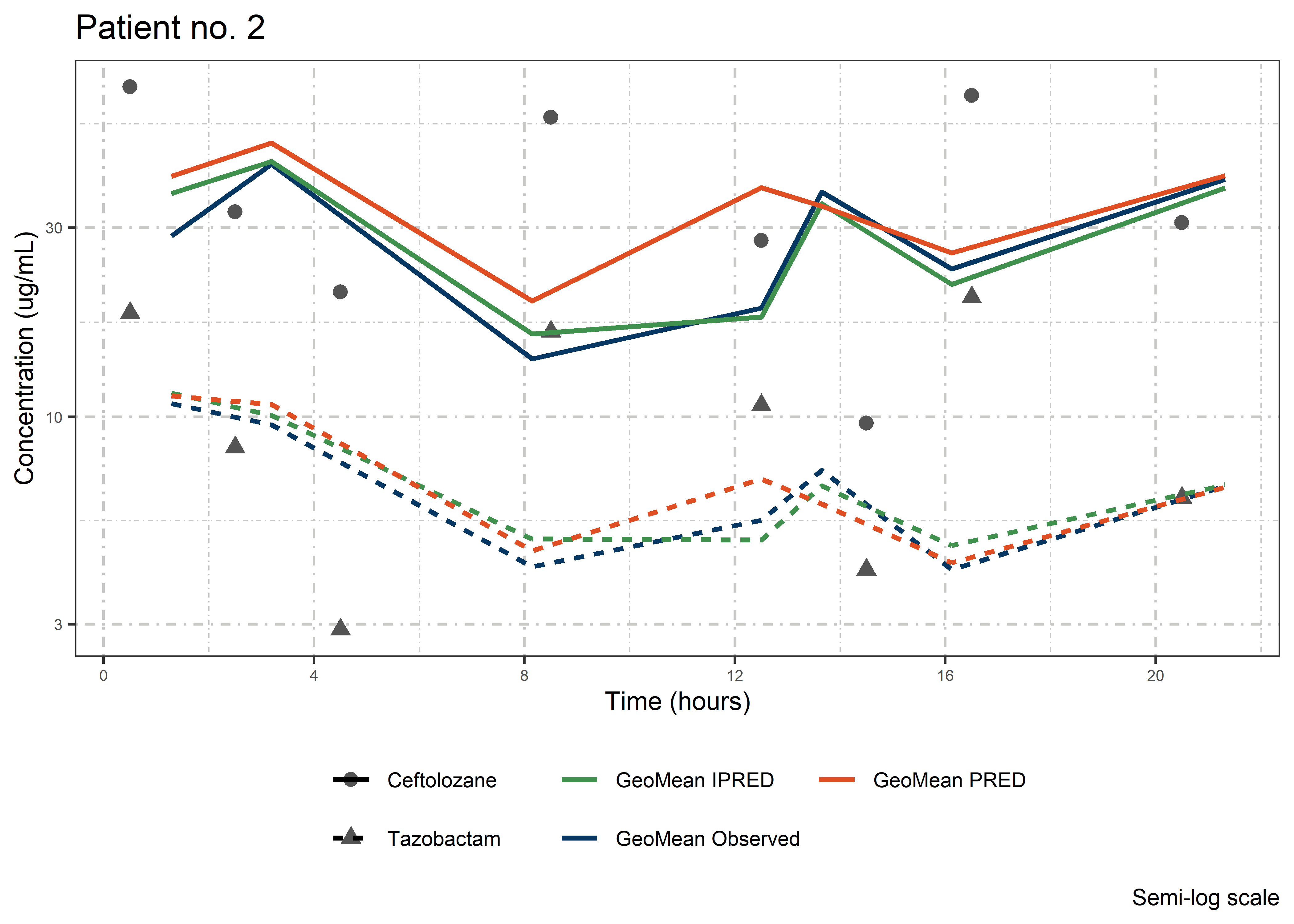

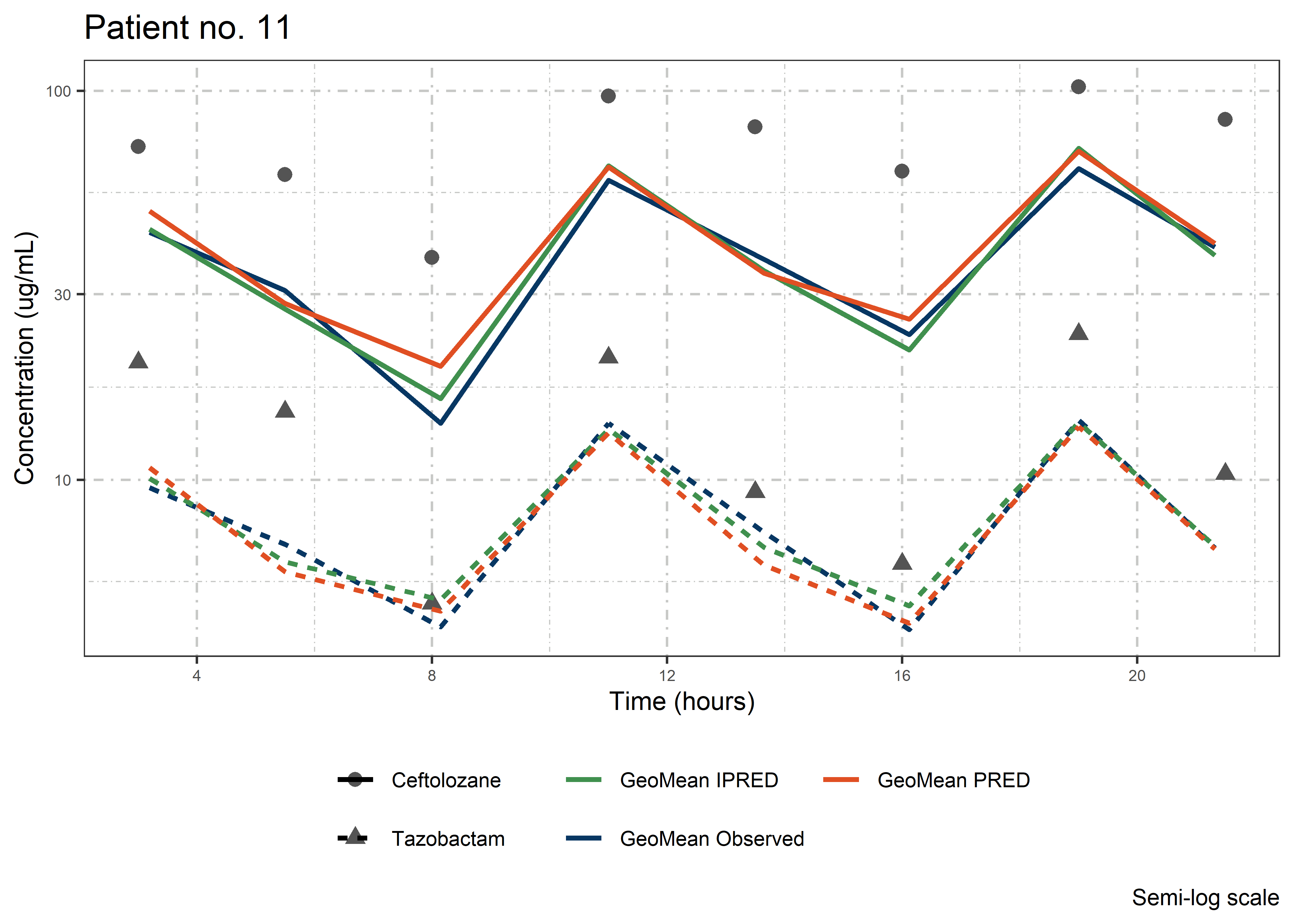

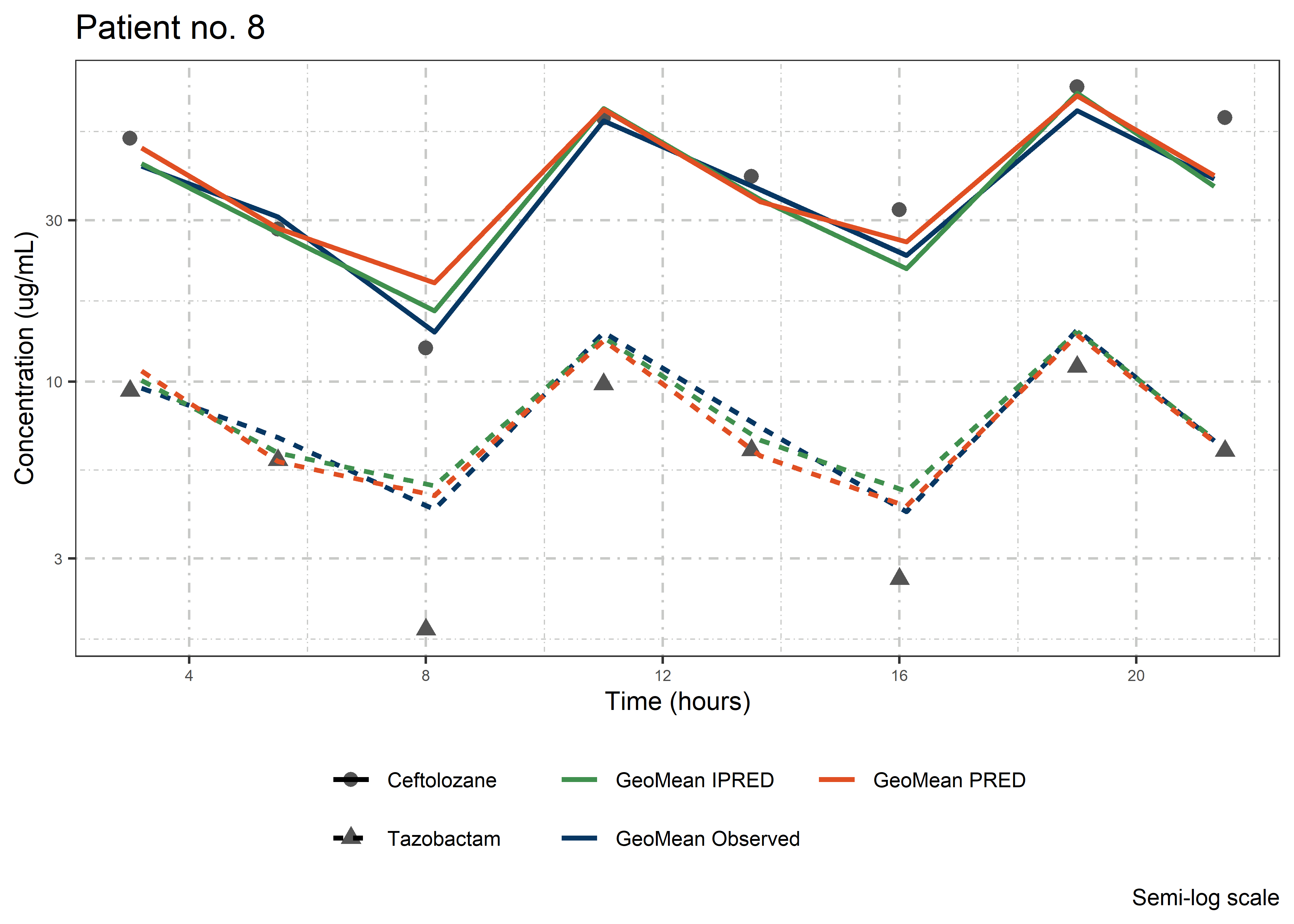

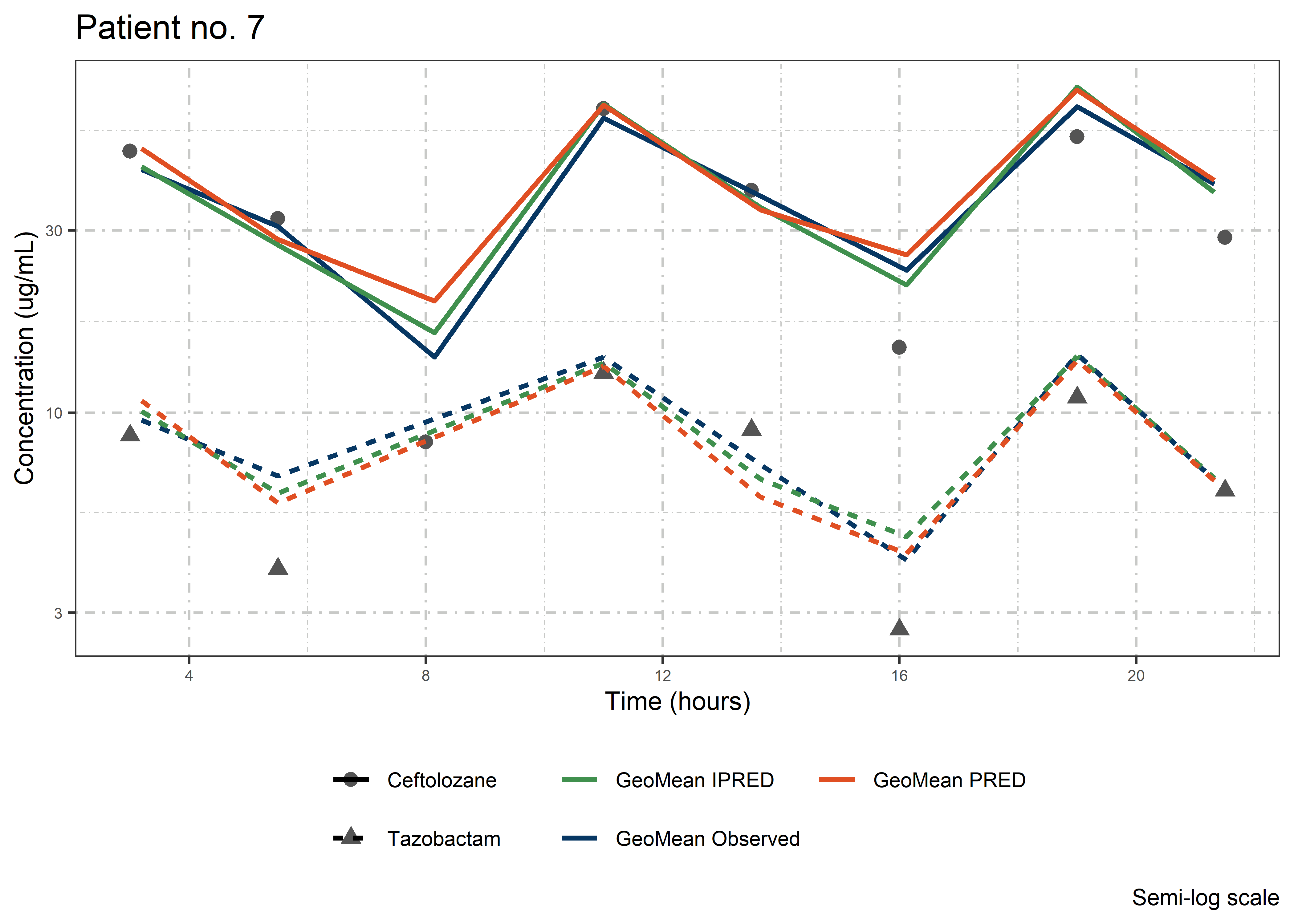

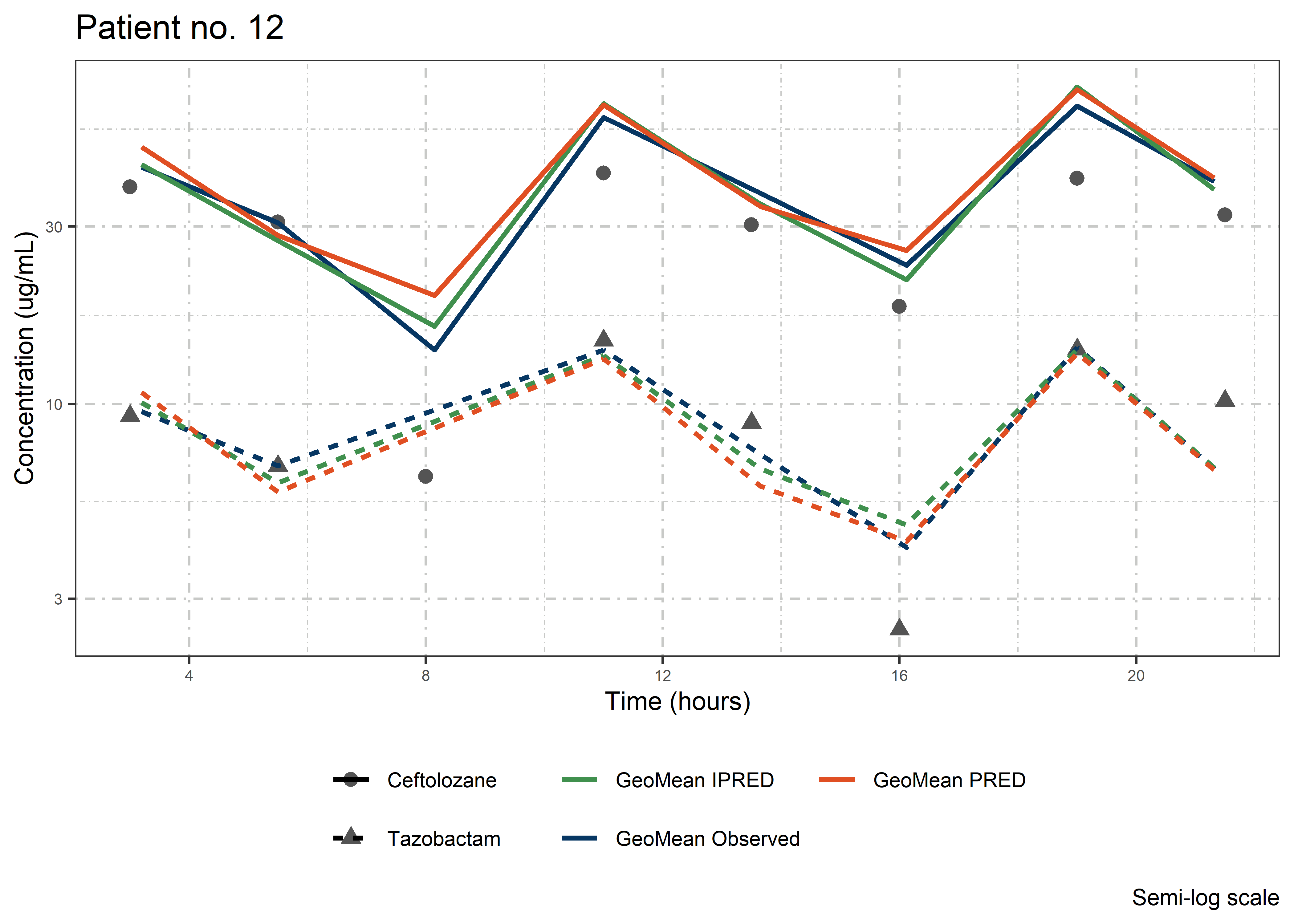

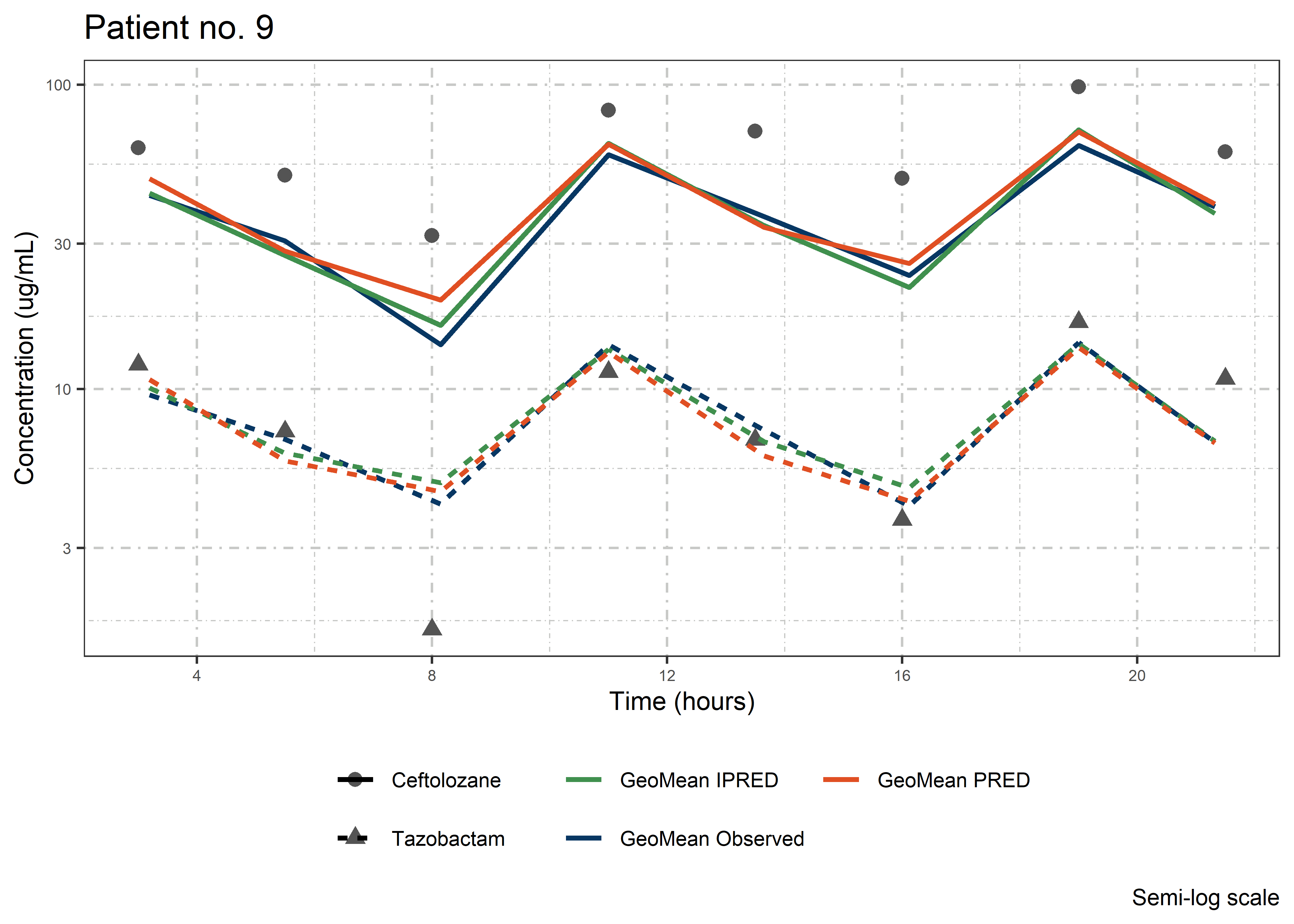

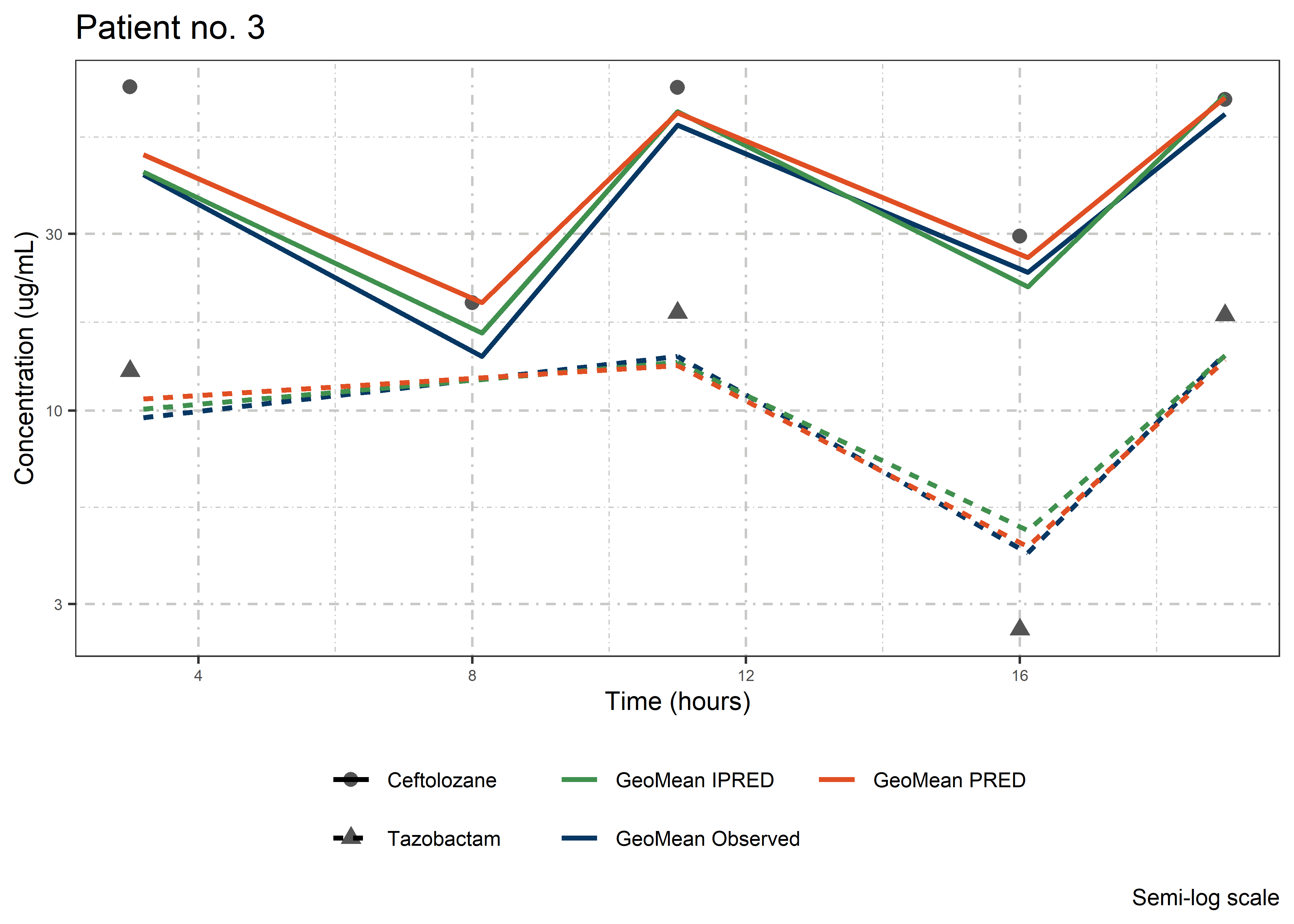

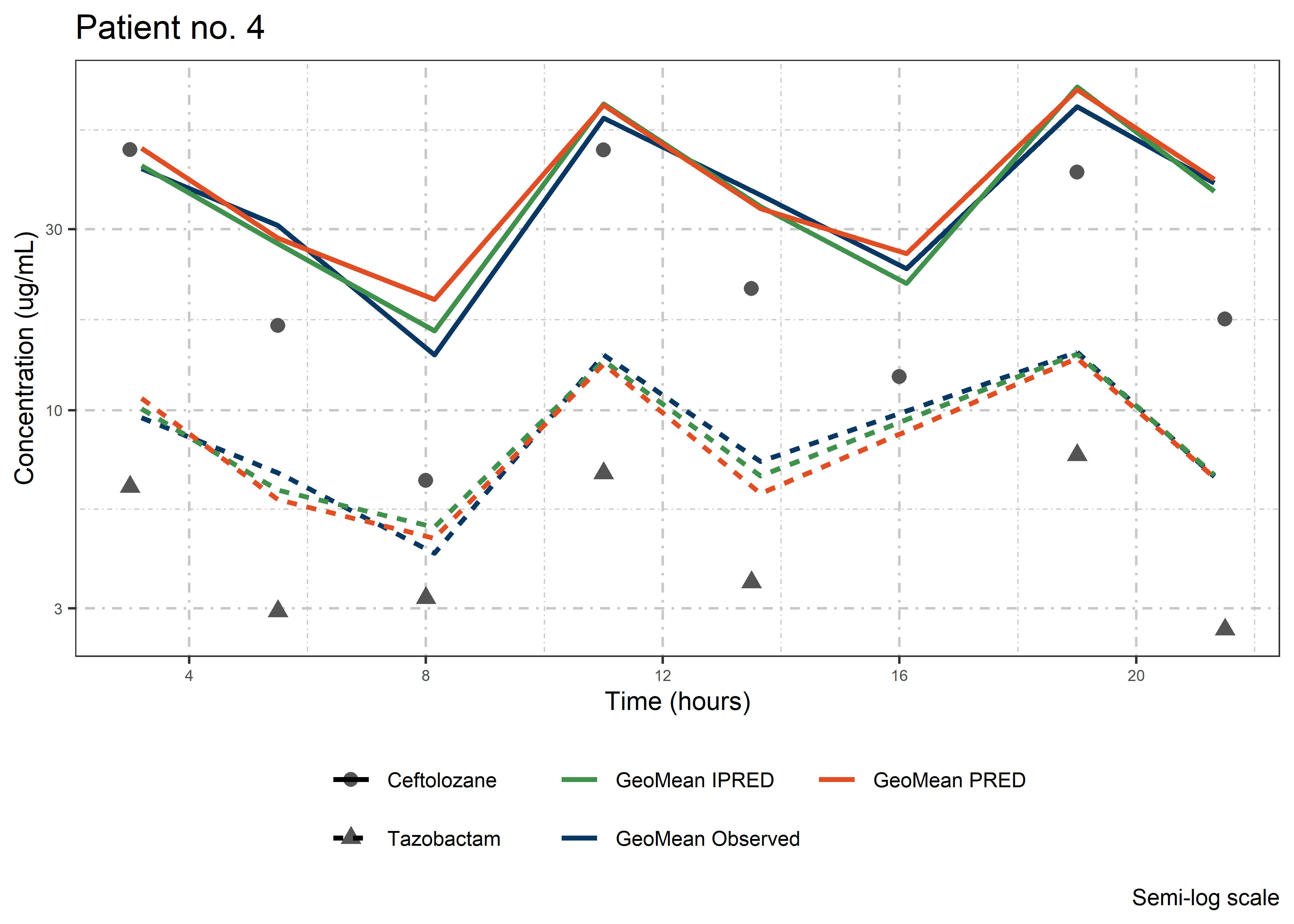

8.3 Semi-log individual

[[1]]


[[2]]


[[3]]


[[4]]


[[5]]


[[6]]


[[7]]


[[8]]


[[9]]


[[10]]


[[11]]


[[12]]


[[13]]

9 ETA Plots

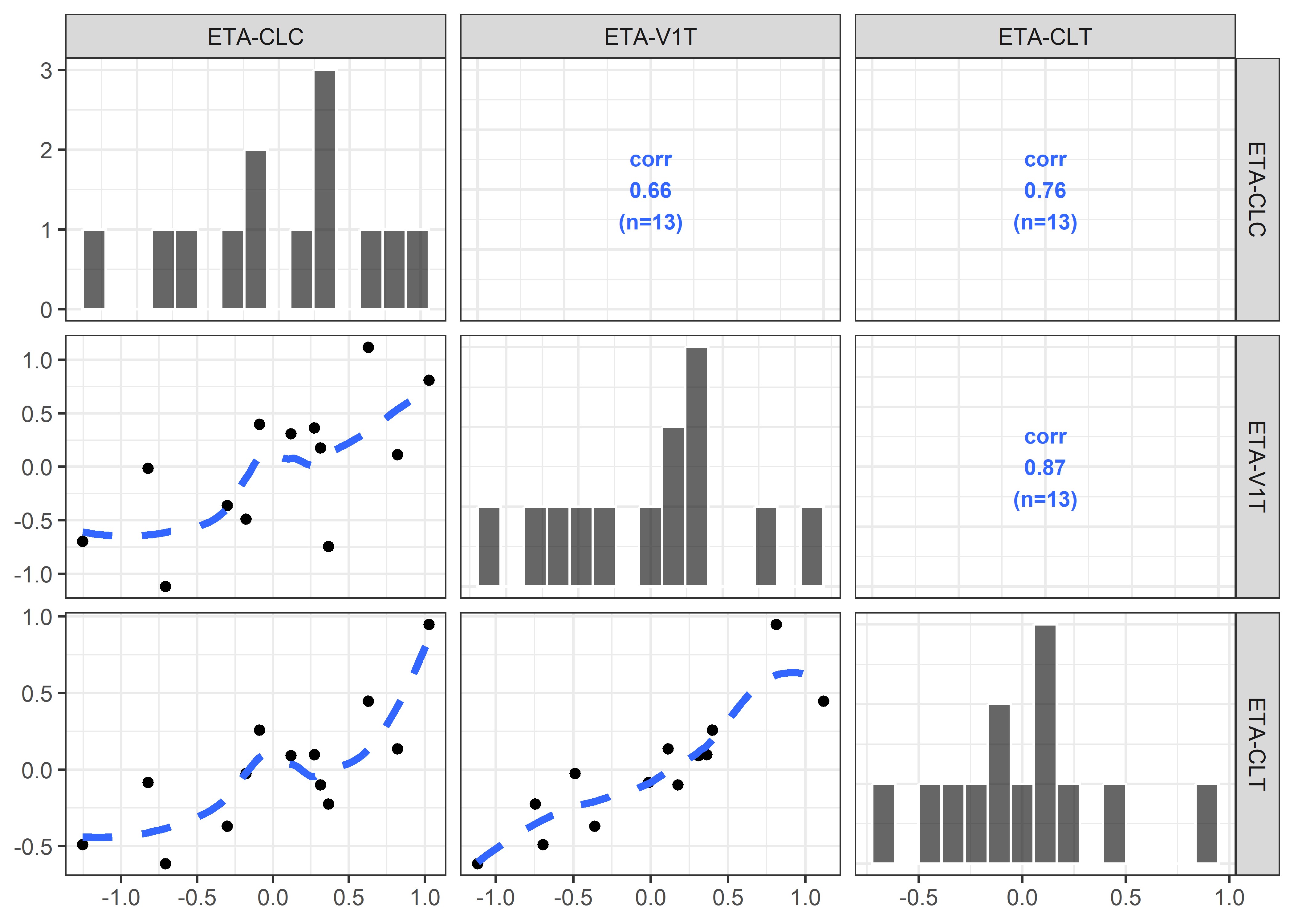

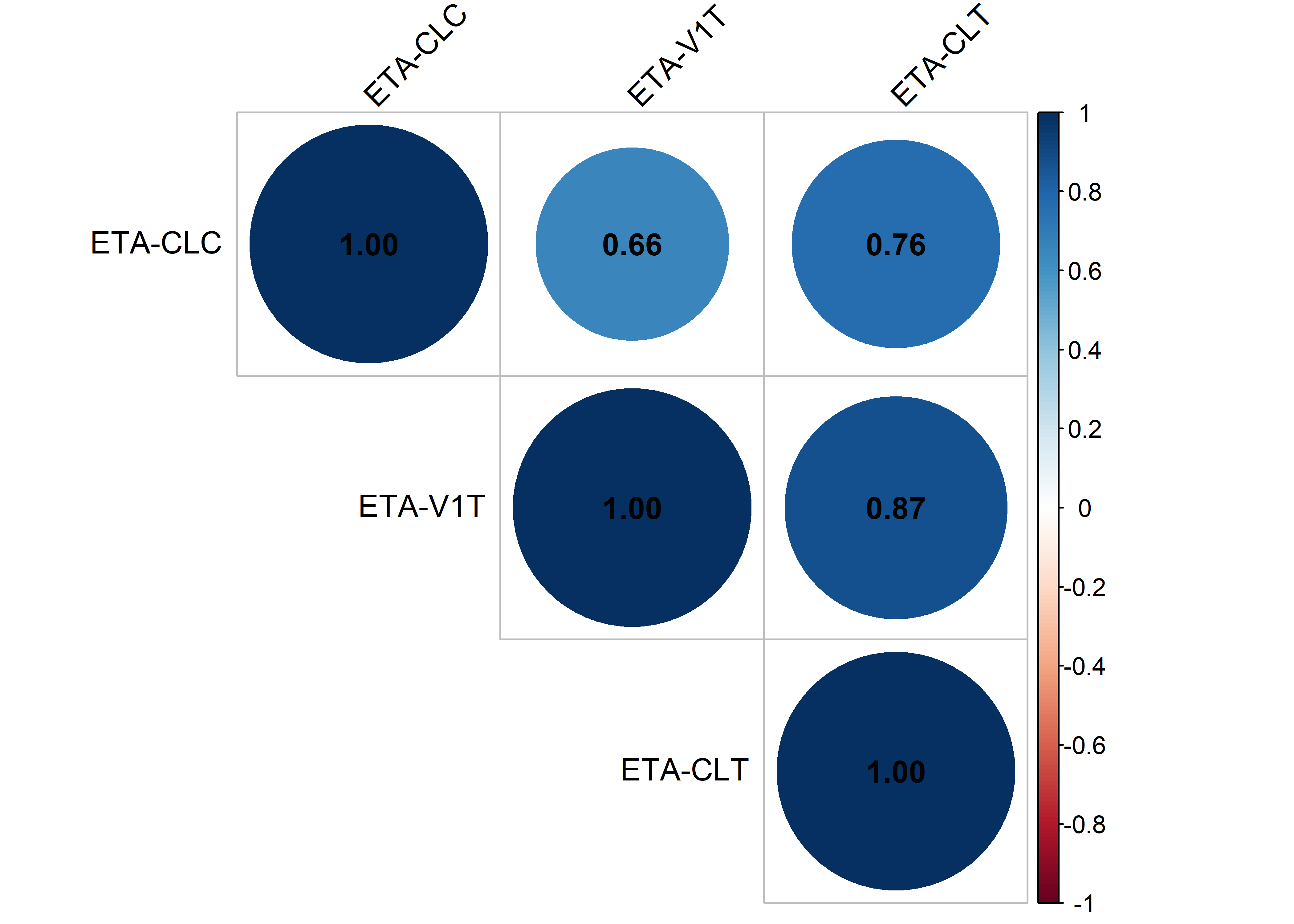

9.1 ETA Correlations

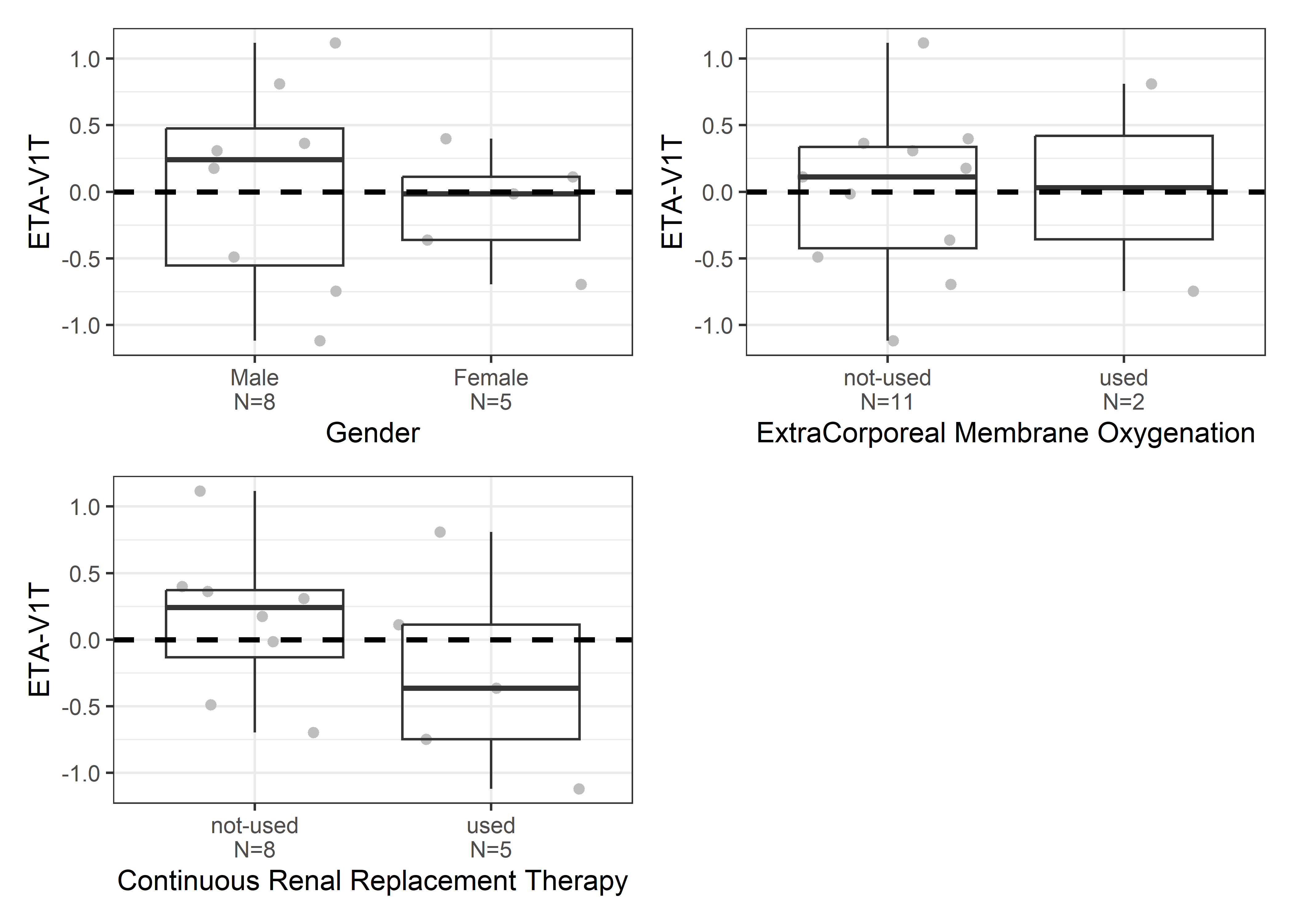

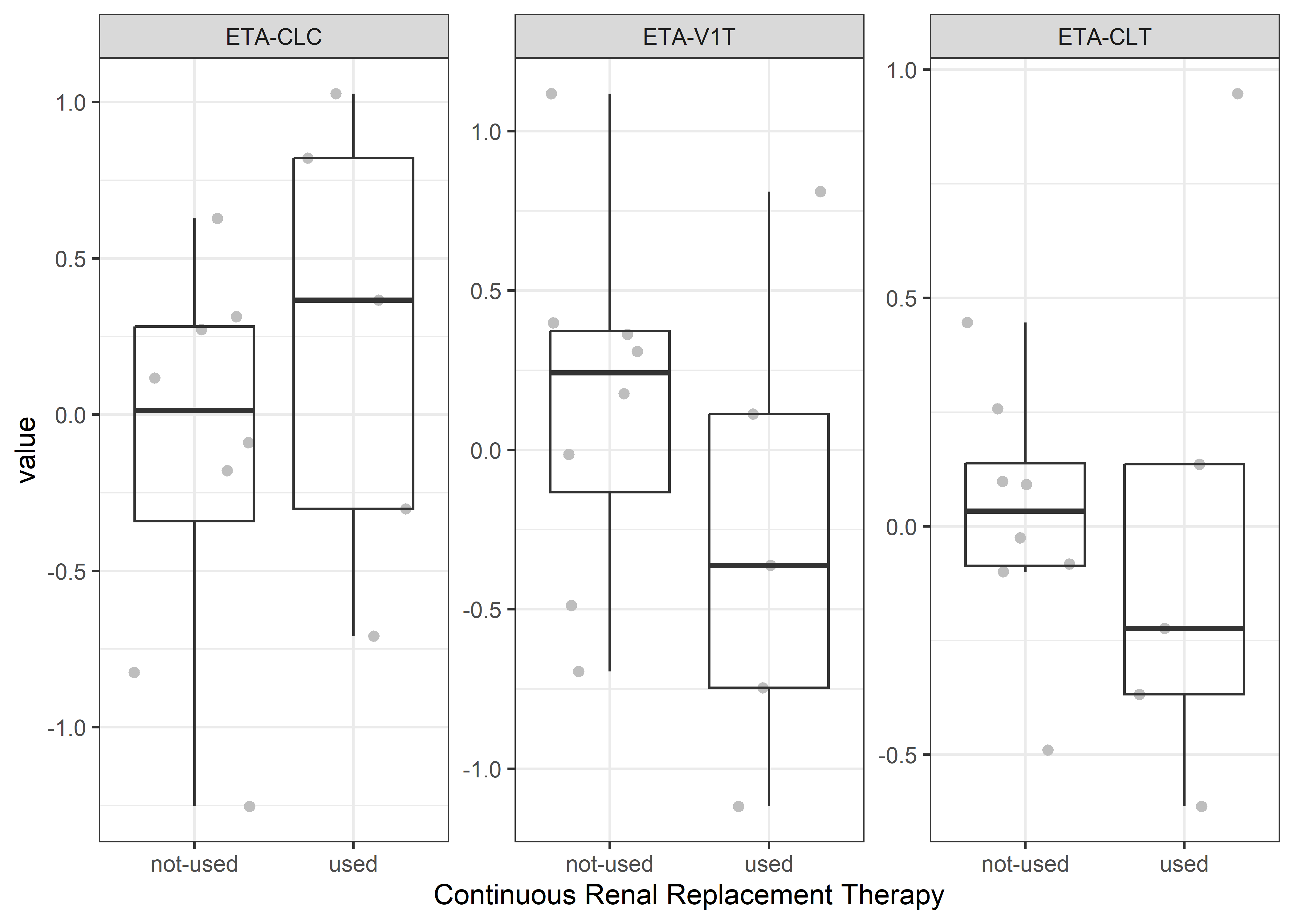

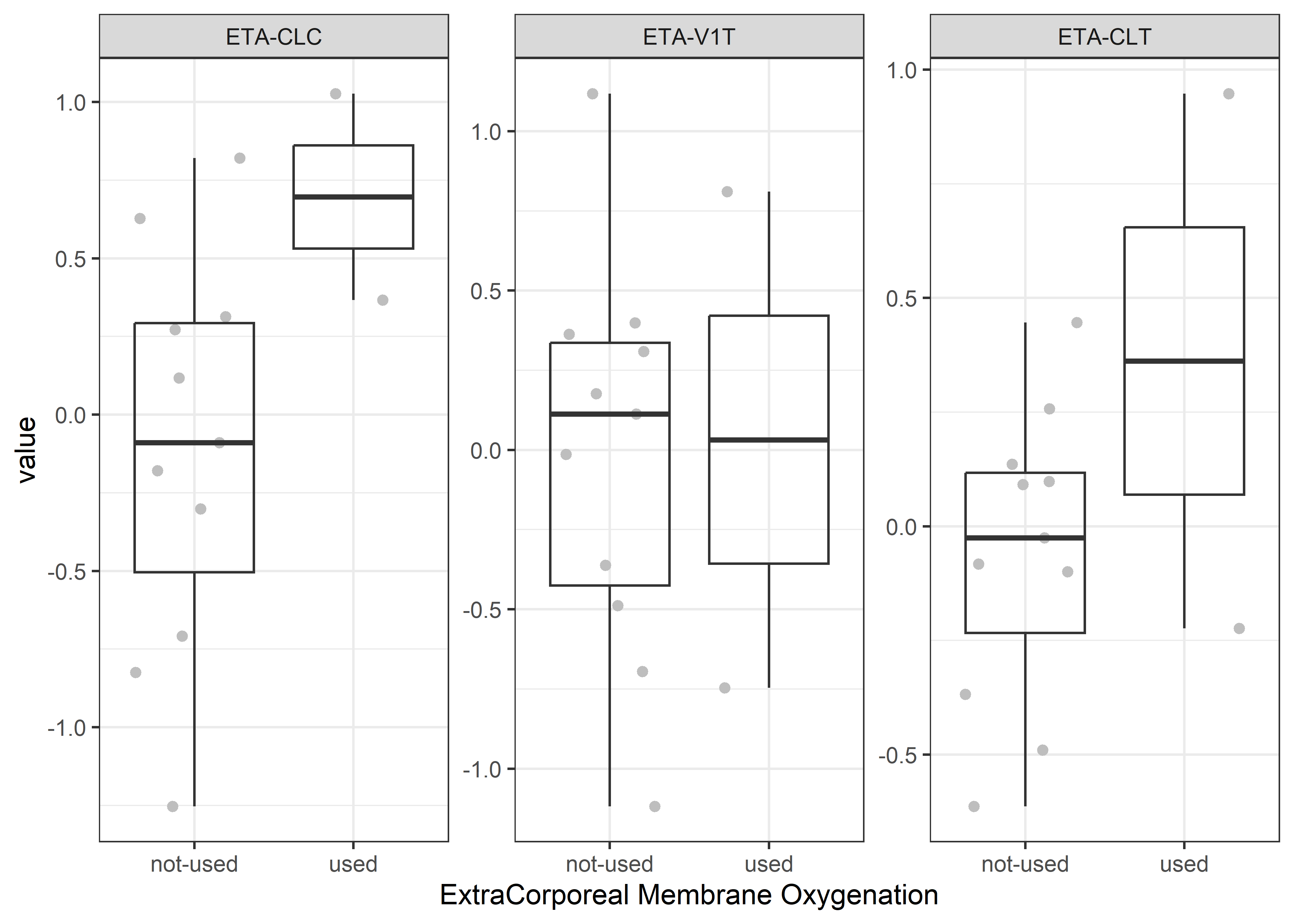

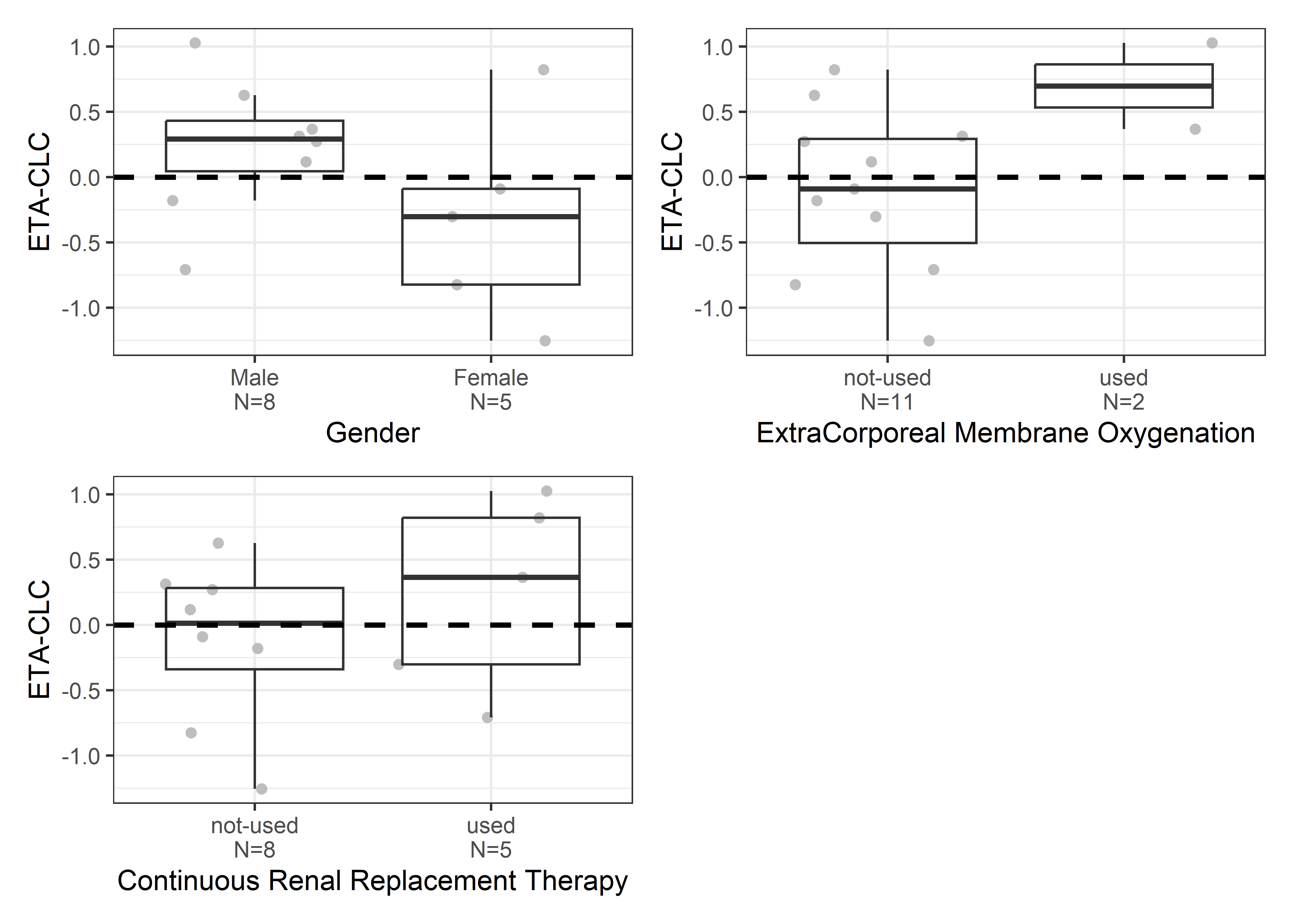

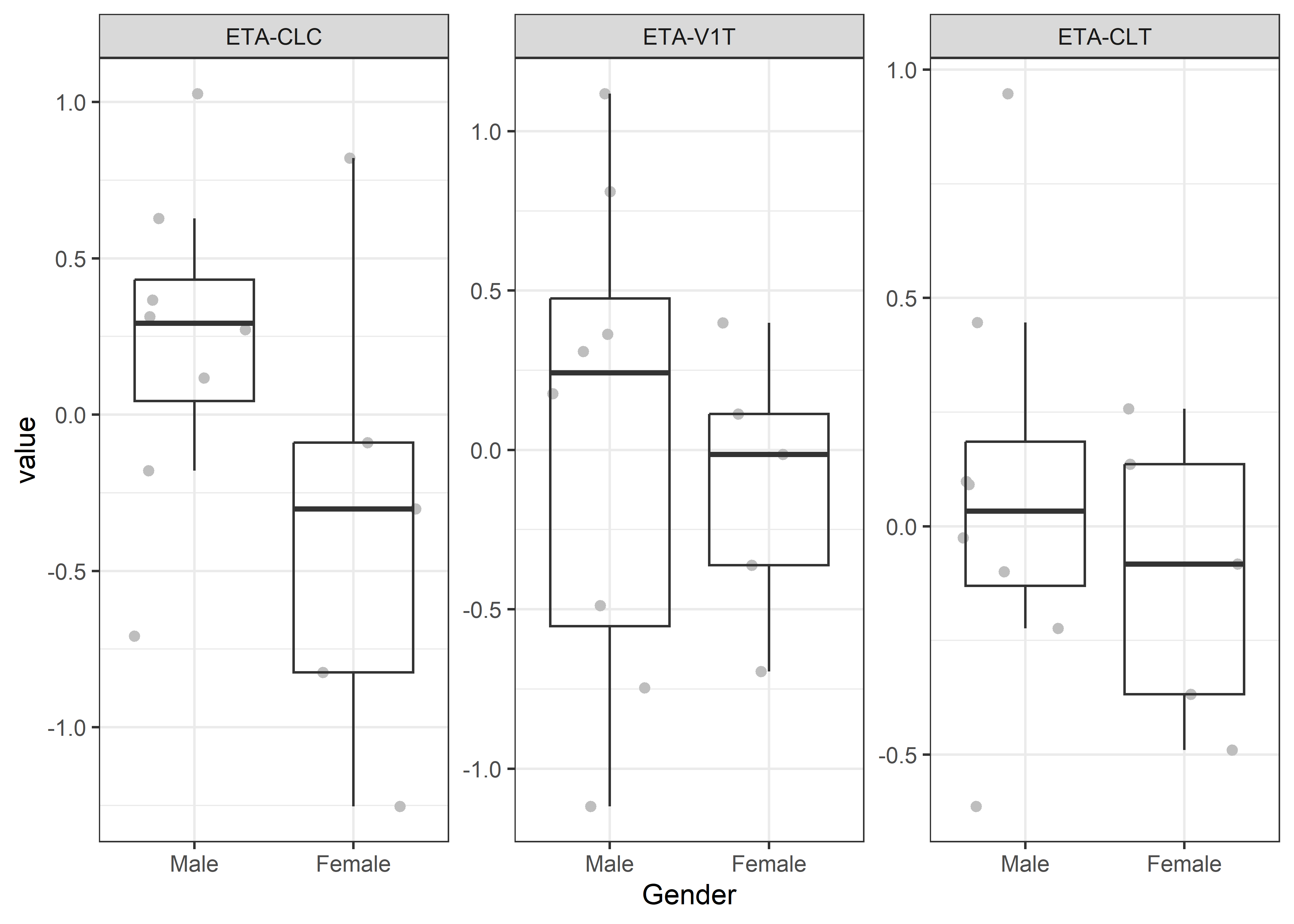

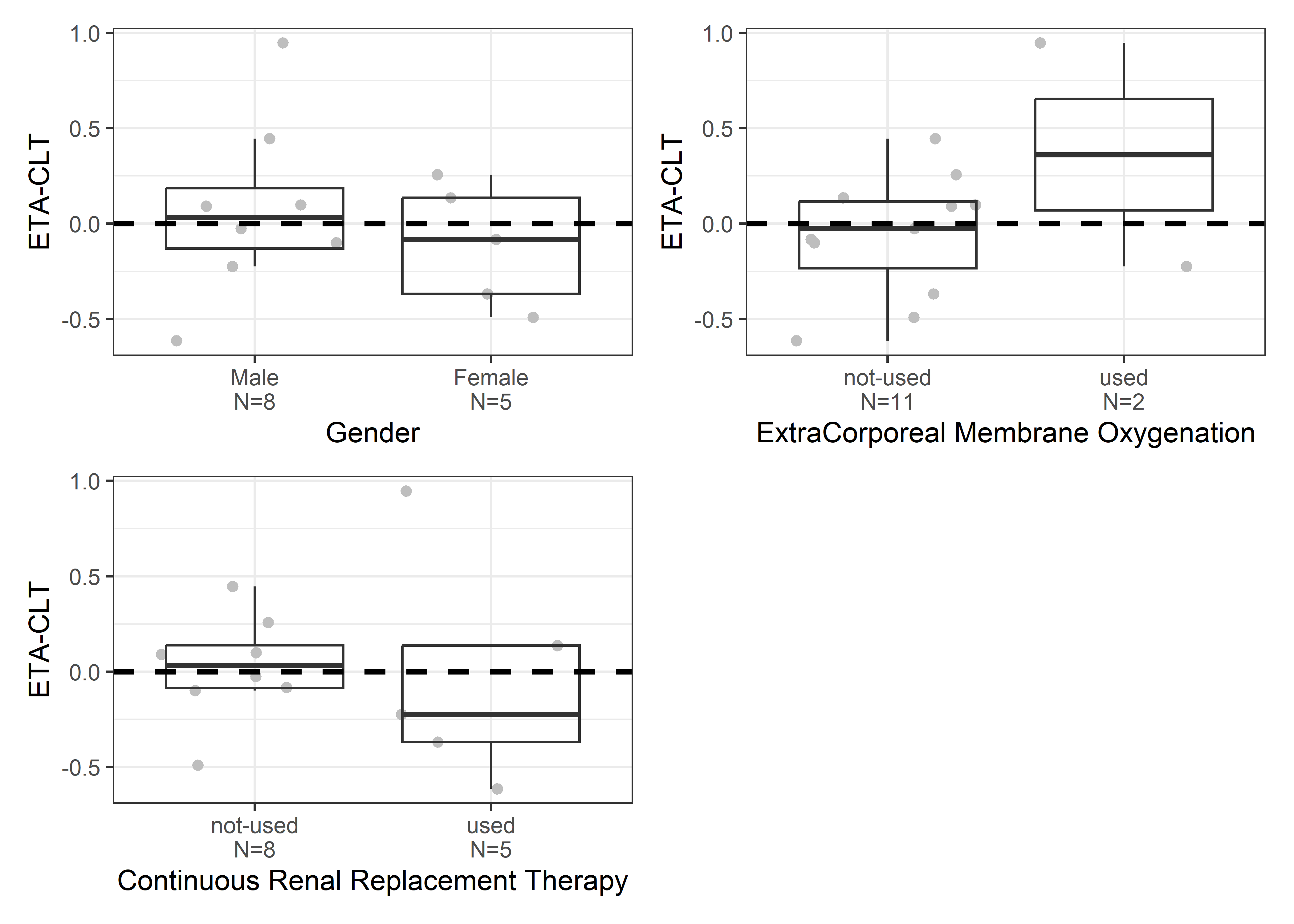

9.2 Categorical ETA plots

[[1]]


[[2]]


[[3]]

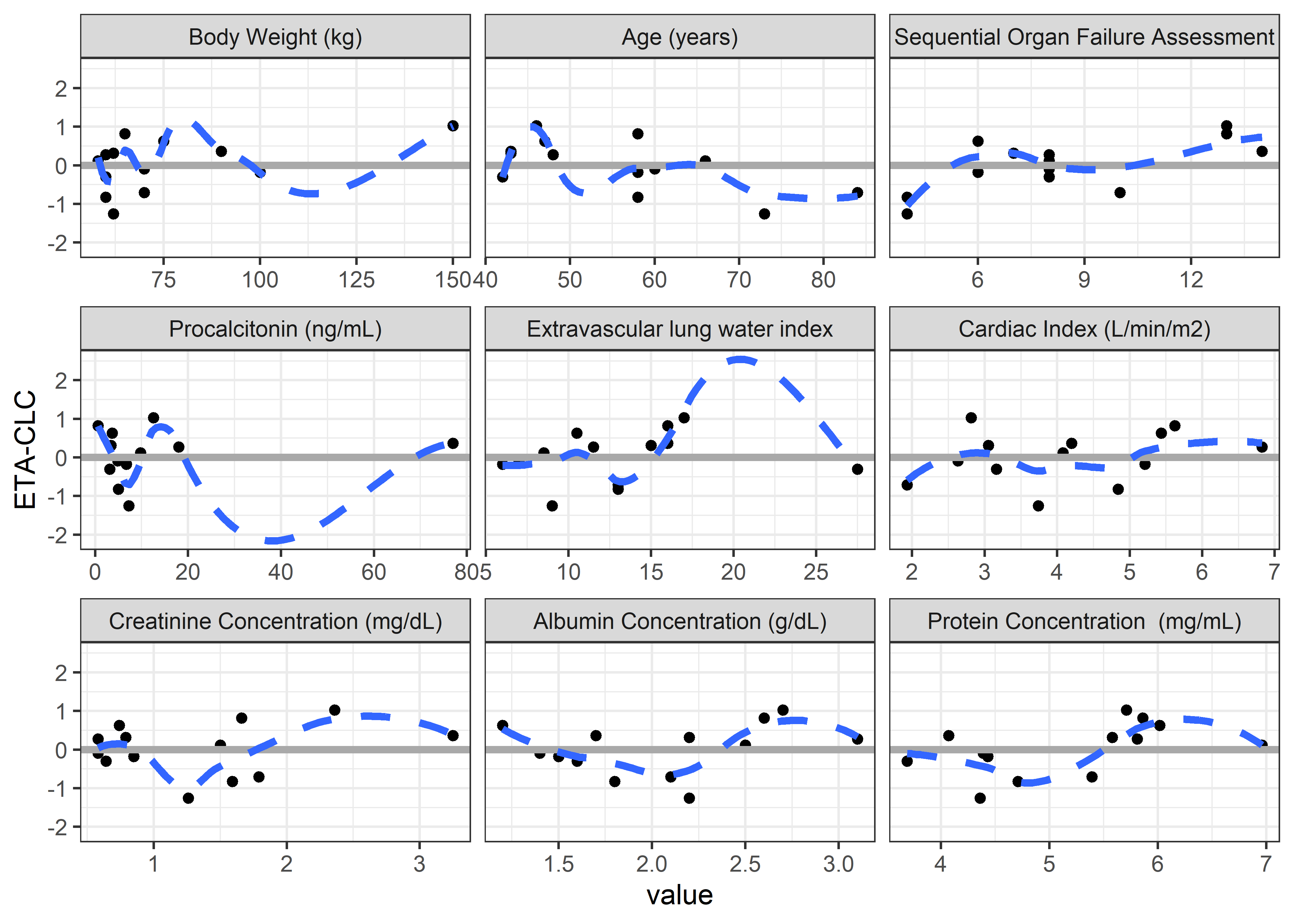

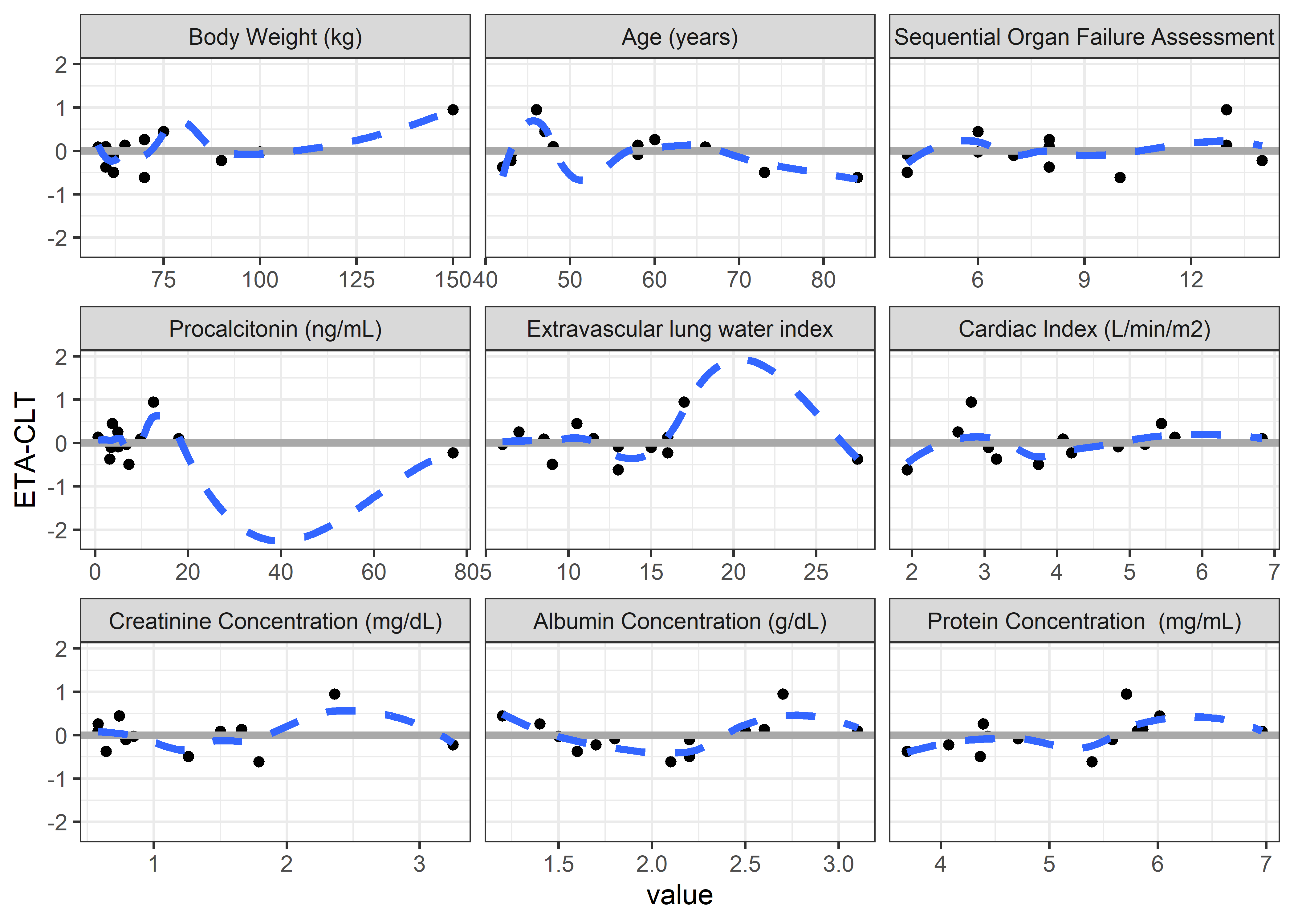

9.3 Continuous ETA plots

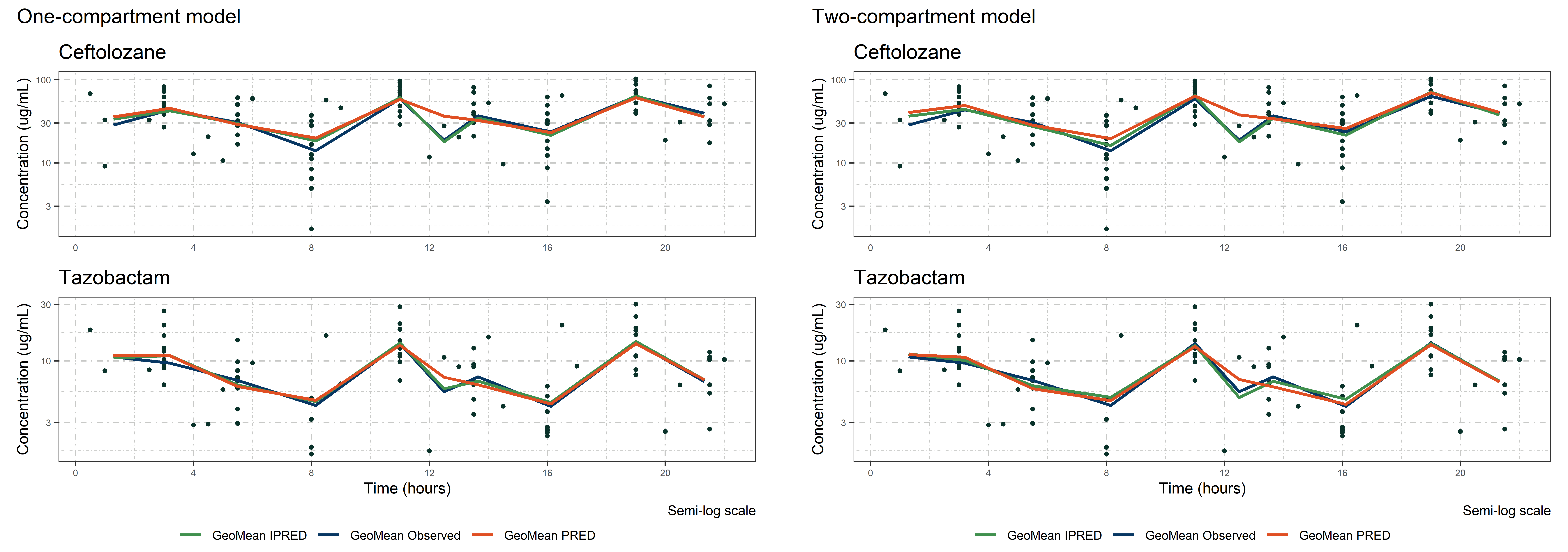

Code
